SELECT A DIAGRAM

01 - Cover Sheet

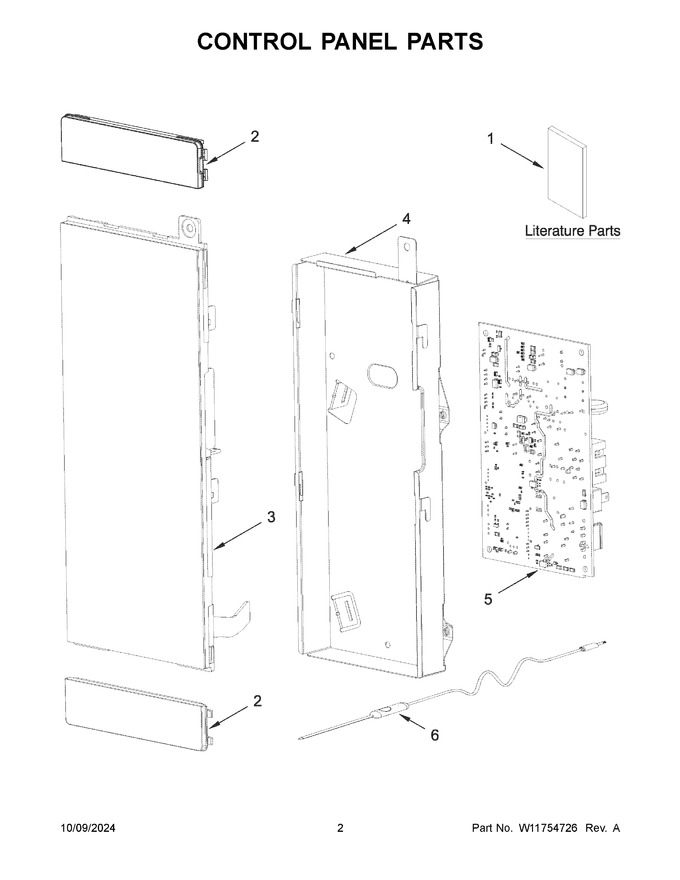

02 - Control Panel Parts


03 - Door And Vent Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Cooking And Cookware Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11646004		Manual, Owner's		Appelez-nous	-
2	W11707272		Cover, Console   (Replaces: W11701370)			Immediately	$ 40.13
3	W11706982		Assembly, Console			Immediately	$ 131.19
4	W11707269		Backer, Control   (Replaces: W11604278)			Immediately	$ 45.36
5	W11744588		Cntrl-elec   (Replaces: W11744010)				$ 279.79
6	W11390946		Probe, Meat   (Replaces: W11303708)		Appelez-nous	-
1A	W11582072		Guide, Quick Start		Appelez-nous	-
1B	W11682375		Sheet, Tech		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
