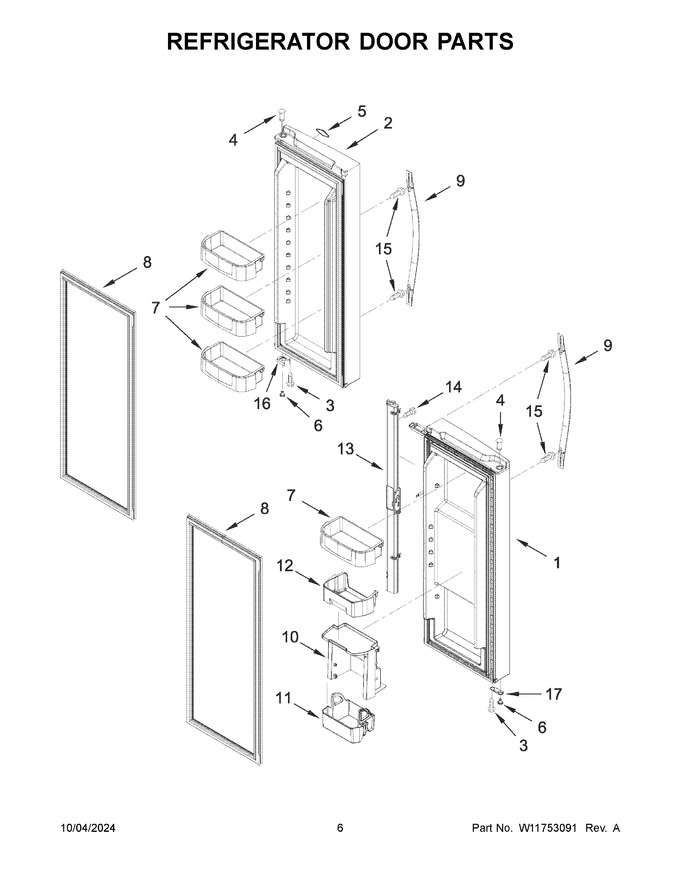

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11654423 | Door, Left (includes #8) (white) (Replaces: W11525213) |
|
$ 531.33 | |||||
| 2 | LW10721540 | Door, Right (includes #8) (white) (Replaces: W10721540) |
|
$ 871.74 | |||||
| 3 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 4 | W11544568 | Thimble, Top (upper) (Replaces: W10366270) |
|
Immediately | $ 11.96 | ||||
| 5 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 6 | WPW10470155 | Closure, Door (Replaces: W10470155) |
|
Immediately | $ 6.47 | ||||
| 7 | WPW10308869 | Bin, Medium (Replaces: W10308869) |
|
Immediately | $ 64.96 | ||||
| 8 | W10460612 | Gasket, Door (beige) (Replaces: W10353189) |
|
Immediately | $ 209.42 | ||||
| 9 | W11127179 | Assembly, Handle (white) (Replaces: W11101973) |
|
Immediately | $ 163.23 | ||||
| 10 | WPW10317224 | Compartment, Utility (Replaces: W10317224) |
|
$ 88.97 | |||||
| 11 | W11106787 | Caddy, Condiment (Replaces: W10462299) |
|
Immediately | $ 91.70 | ||||
| 12 | WPW10326335 | Bin, Shallow (Replaces: W10326335) |
|
Immediately | $ 52.61 | ||||
| 13 | WPW10624451 | Assembly, Flipper Mullion (white) (Replaces: W10624451) |
|
Immediately | $ 116.04 | ||||
| 14 | W10854958 | Screw (Replaces: 12990302) |
|
$ 6.69 | |||||
| 15 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 10.67 | ||||
| 16 | WPW10397055 | Bracket, Door Stop (right Hand) (Replaces: W10397055) |
|
Immediately | $ 31.66 | ||||
| 17 | W11745278 | Bracket, Door Stop (left Hand) (Replaces: 2189202) |
|
Immediately | $ 12.03 |
