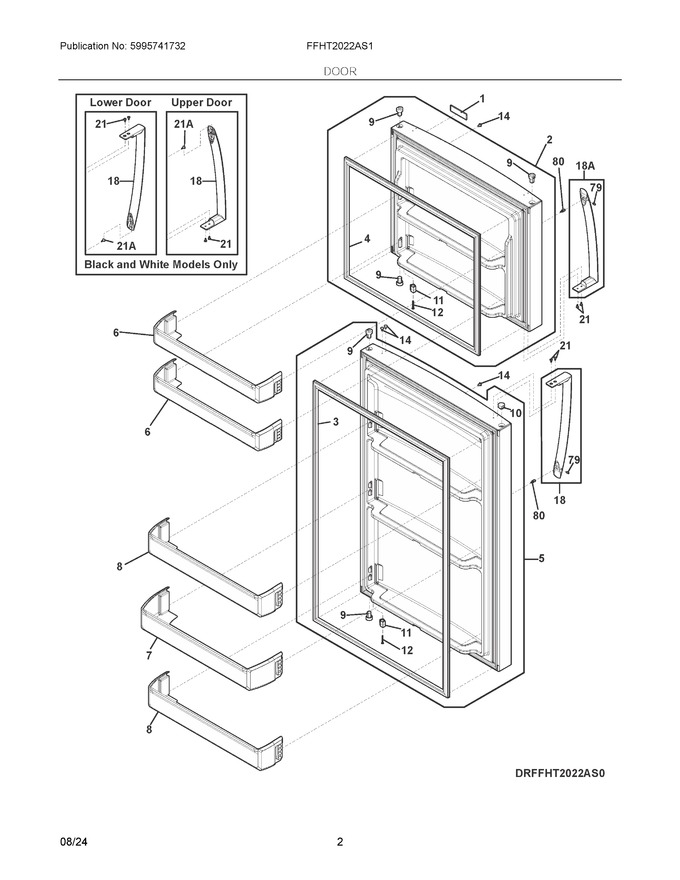

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511146		Badge, Frigidaire, Chrome			Immediately	$ 47.03
2	5304536269		Door Assembly, Freezer, Stainless			Immediately	$ 309.09
3	5304528903		Gasket, Door, Gray, Fresh Food			Immediately	$ 205.12
4	5304528904		Gasket, Door, Gray, Freezer			Immediately	$ 180.01
5	5304536268		Door Assembly, Fresh Food, Stainless			Immediately	$ 426.57
6	5304519702		Bin, Door, White, Freezer			Immediately	$ 50.63
7	5304522123		Bin, Door, 6", White, Refrigerator			Immediately	$ 70.75
8	5304519703		Bin, Door, 4", White, Refrigerator			Immediately	$ 22.42
9	5304522194		Bearing, Hinge, Gray			Immediately	$ 2.28
10	5304522187		Cover, Hinge Bearing, Gray			Immediately	$ 7.44
11	5304536275		Hook, Auto Closer, Gray			Immediately	$ 3.77
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38
14	240494007		Plug-button, Gray			Immediately	$ 15.92
18	5304511368		Handle, Door, Stainless, Ref Rhs, W/set Screw				$ 219.17
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
79	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
18A	5304511369		Handle, Door, Stainless, Frz Rhs, W/set Screw				$ 251.78
21A	240521303		Screw, #10-16 X 1/2			Immediately	$ 30.20
NIA	241601001		Wrench, Allen		Appelez-nous	-
