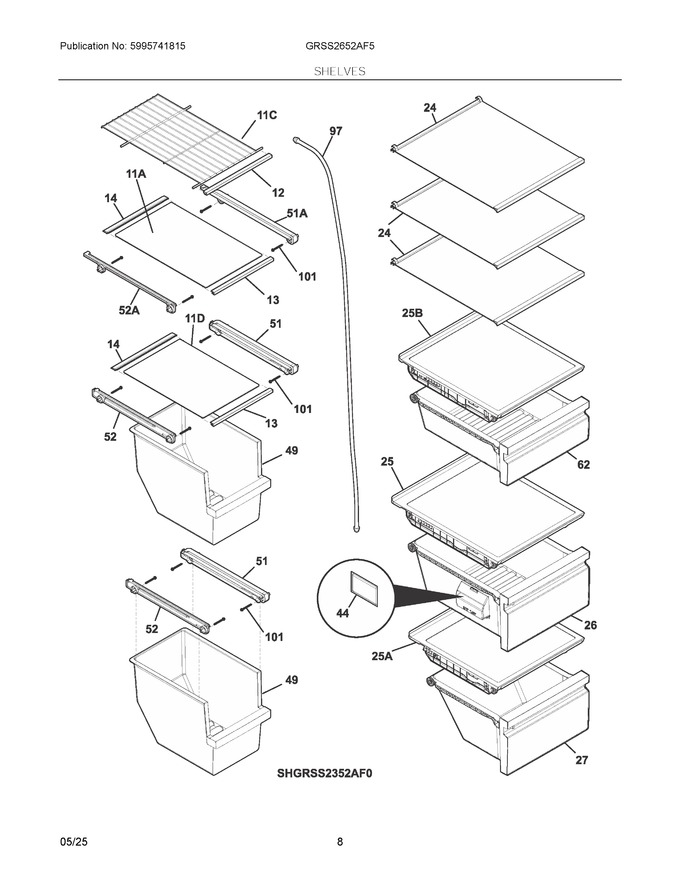

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 5304527116 | Trim, Wire Shelf, Metalic, Freezer, Front |
|
- | |||||
| 13 | 5304527113 | Trim, Glass Shelf, Metalic, Freezer, Front |
|
$ 10.62 | |||||
| 14 | 5304527128 | Trim, Freezer Shelf, Rear |
|
$ 16.69 | |||||
| 24 | 5304526915 | Shelf Assembly, Glass, Metal Trim |
|
$ 34.58 | |||||
| 25 | 140116194154 | Crisper Cover, Assembly, Glass, Upper, W/trim-gasket (Replaces: 5304526918) |
|
- | |||||
| 26 | 5304526927 | Crisper Pan, Upper Assy, W/rollers, Trim |
|
$ 221.84 | |||||
| 27 | 5304526928 | Crisper Pan, Lower Assy, W/rollers, Trim |
|
$ 212.93 | |||||
| 44 | FRPAPKRF | Frig Freshness Booster Refill |
|
Immediately | $ 15.60 | ||||
| 49 | 5304536366 | Basket, Freezer, Sliding, W/trim (Replaces: 5304526902) |
|
$ 92.78 | |||||
| 51 | 240343002 | Hanger-basket, Rh |
|
$ 65.22 | |||||
| 52 | 240343102 | Hanger-basket, Lh |
|
$ 69.77 | |||||
| 62 | 5304526929 | Deli Pan, Assembly, W/rollers, Trim |
|
$ 201.93 | |||||
| 97 | 242220119 | Tube, Water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| 101 | 218493101 | Screw, Hex Washer Head, 8-18ab X 1-3/4 |
|
$ 13.46 | |||||
| 11A | 240350604 | Shelf-freezer, Glass, Upper |
|
$ 114.52 | |||||
| 11C | 809078301 | Shelf, Pizza |
|
- | |||||
| 11D | 240350605 | Shelf-freezer, Glass, Lower |
|
$ 106.93 | |||||
| 25A | 5304526919 | Crisper Cover, Assembly, Glass, Lower, W/trim-gasket |
|
$ 36.92 | |||||
| 25B | 5304526920 | Deli Cover, Assembly, Glass, W/trim-gasket |
|
$ 33.07 | |||||
| 51A | 240395502 | Hanger-basket, Rh |
|
$ 73.00 | |||||
| 52A | 240395602 | Hanger-basket, Lh |
|
$ 61.66 | |||||
| NIA | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIB | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
