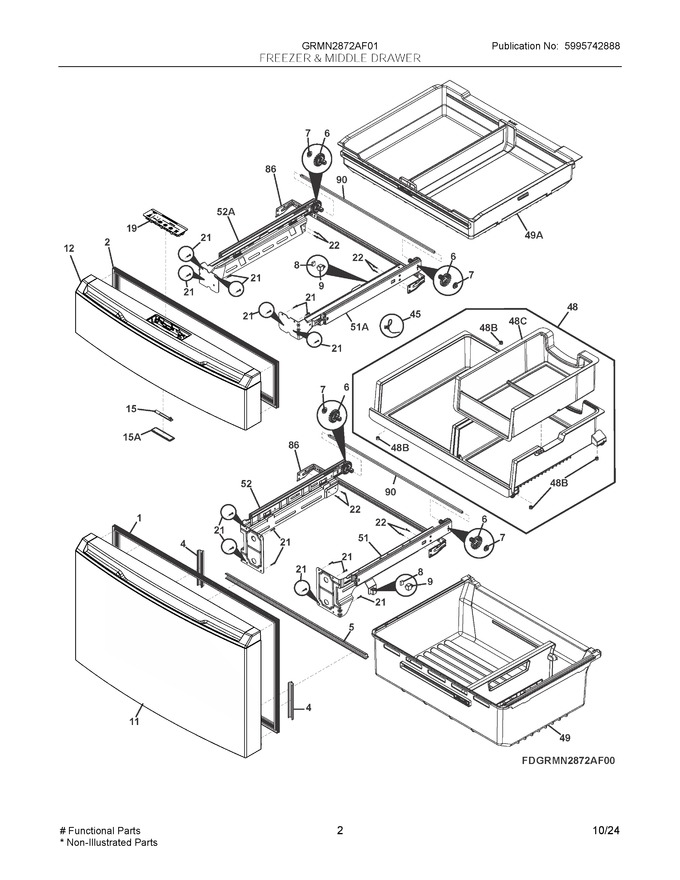

02 - Freezer & Middle Drawer


03 - Fresh Food Doors


04 - Cabinet


05 - Shelves


06 - Fresh Food System / Middle Drawer Air Flow


07 - Freezer System / Machine Compartment


08 - Controls & Water Dispenser


09 - Ice Maker


10 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304519037		Gasket, Door, Freezer			Immediately	$ 53.51
2	5304519038		Gasket, Door, Middle				$ 58.84
4	5304519041		Gasket, Door, 162mm, Secondary   (Replaces: 5304519040)			Immediately	$ 25.47
5	5304519041		Gasket, Door, 754mm, Frz Bottom, Secondary			Immediately	$ 25.47
6	140025649017		Gear, Pinion   (Replaces: 5304524001)			Immediately	$ 4.58
7	5304519043		Bearing, Pad, Gear				$ 9.86
8	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
9	5304535665		Support, Magnet   (Replaces: 5304519045)				$ 3.33
11	5304537398		Door Assembly, Outer, Stainless, Freezer   (Replaces: 5304529561)				$ 392.78
12	140281015739		Door Assembly, Outer, Stainless, Middle Drawer   (Replaces: 5304529562)		Appelez-nous	-
15	5304523011		Light Board, 3 Led Cluster, 6500k			Immediately	$ 48.85
19	5304534898		Display Assembly, Middle Drawer, W/pcb				$ 169.61
21	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
22	5304519053		Screw, M3.5 X 6		Appelez-nous	-
45	539151026		Clip, Harness			Immediately	$ 36.14
48	5304534917		Drawer Assembly, Freezer, W/ice Container				$ 179.53
49	5304534911		Basket Assembly, Freezer Drawer, W/divider		Appelez-nous	-
51	5304534895		Slider, Assembly, Rh Freezer				$ 184.34
52	5304534894		Slider, Assembly, Lh Freezer			Immediately	$ 183.09
86	5304536612		Bracket, Reinforcement   (Replaces: 5304519064)		Appelez-nous	-
90	5304524002		Shaft, Slider, Telescopic				$ 59.91
15A	5304526839		Lens, Led Light, Lh Endcap			Immediately	$ 9.10
48B	5304532074		Cushion, Rubber, Freezer Drw		Appelez-nous	-
48C	5304535271		Container, Drawer Ice, Freezer		Appelez-nous	-
49A	5304534910		Basket Assembly, Middle Drawer, W/divider		Appelez-nous	-
51A	5304534897		Slider, Assembly, Rh Middle Drw				$ 184.71
52A	5304534896		Slider, Assembly, Lh Middle Drw				$ 178.72
NI	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
NIA	5304519084		Screw, Flange Pnhd Phl, 8g X 1/2		Appelez-nous	-
NIA	5304519066		Screw, Phil Pn Hd, M4 X 8		Appelez-nous	-
NIBA	811949503		Screw, Truss, 4.2 X 13				$ 3.03
