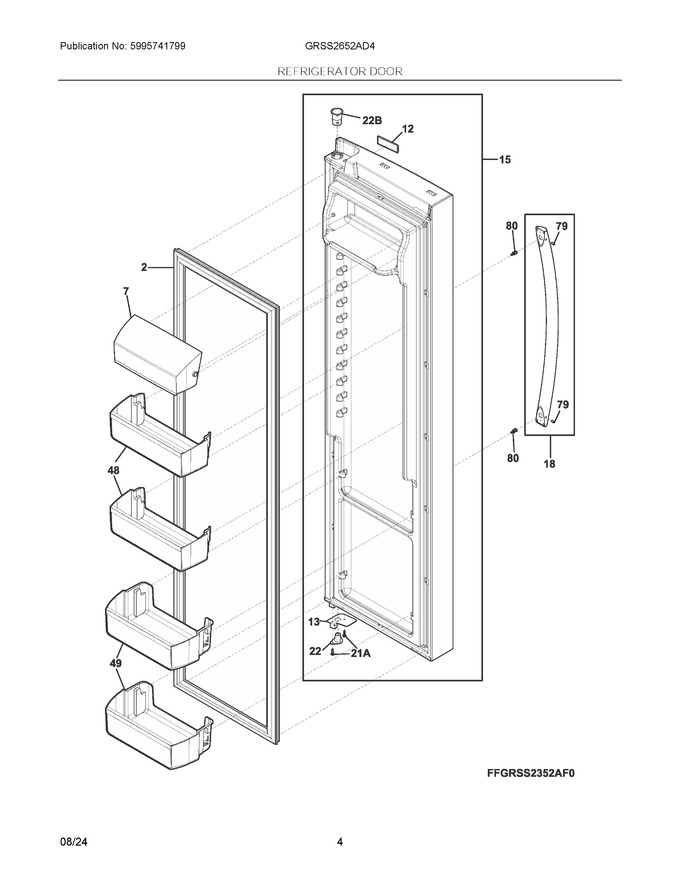

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786005 | Refrigerator Door Gasket, Grey, Magnetic |
|
Immediately | $ 225.62 | ||||
| 7 | 5304525904 | Cover, Compartment, Dairy |
|
Immediately | $ 61.56 | ||||
| 12 | 5304510904 | Nameplate, Black Stainless, Frig Gallery |
|
$ 54.60 | |||||
| 13 | 241990201 | Door Stop, Black, Ref |
|
$ 21.27 | |||||
| 15 | 5304526962 | Door Assembly, Fresh Food, Black Stainless, Complete |
|
- | |||||
| 18 | 5304527112 | Handle, Door, Black Stainless, W/set Screws |
|
Immediately | $ 104.66 | ||||
| 22 | 241990301 | Bearing-hinge, Gray |
|
$ 7.09 | |||||
| 48 | 5304536363 | Bin-2ltr 26 W/trim Ff Gallery (Replaces: 5304535006) |
|
$ 44.75 | |||||
| 49 | 5304536368 | Bin-gal W/trim 26 Ff Gallery (Replaces: 5304535005) |
|
Immediately | $ 30.37 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 | |||||
| NIA | 241601002 | Wrench, Allen |
|
- |
