| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

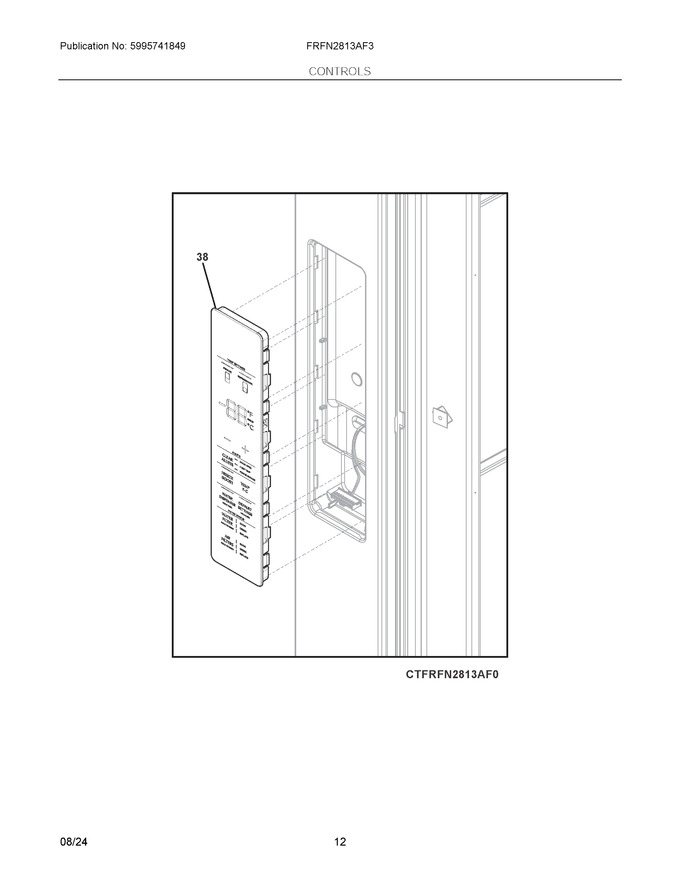

| 38 | 5304533095 | User Interface, Assembly, Gray |
|
Immediately | $ 279.11 | ||||
| NI | 5304538337 | Harness, Wiring, Door |
|
Immediately | $ 32.40 |
