View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

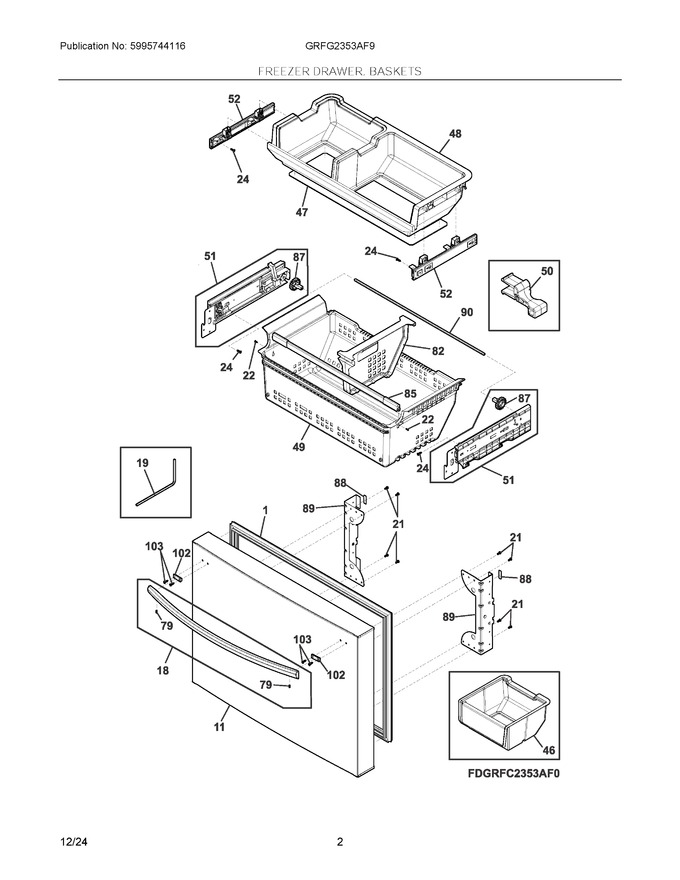

02 - Freezer Drawer, Baskets
03 - Fresh Food Door
04 - Cabinet
05 - Shelves
06 - Cooling System
07 - Controls
08 - Ice Maker
09 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket |
|
Immediately | $ 86.28 | ||||
| 11 | 5304530833 | Drawer Panel, Outer, Stainless, Freezer |
|
Immediately | $ 404.61 | ||||
| 18 | 5304531227 | Handle, Drawer , Stainless, Freezer |
|
Immediately | $ 161.59 | ||||
| 19 | 5304508270 | Wrench, Allen , Set Screw |
|
Immediately | $ 21.34 | ||||
| 21 | 241690602 | Screw, Quadrex , #10-16 Hilo |
|
Immediately | $ 10.63 | ||||
| 22 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 24 | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 11.44 | |||||
| 46 | 5304536491 | Container-ice Bucket, Bm - Cd |
|
$ 75.21 | |||||
| 47 | 5304531175 | Glass, Basket, Upper |
|
$ 132.06 | |||||
| 48 | 5304537202 | Basket-upper Basket Cd |
|
Immediately | $ 130.67 | ||||
| 49 | 5304526200 | Basket, Freezer, Lower |
|
Immediately | $ 147.57 | ||||
| 50 | 5304501271 | Clip, Freezer Basket |
|
Immediately | $ 15.60 | ||||
| 51 | 5304507976 | Slide Assembly, Basket Lower, Lh, W/pinion |
|
Immediately | $ 236.77 | ||||
| 52 | 5304537225 | S/a Pur-upper Frz Slide Rh Cd |
|
- | |||||
| 79 | 218755405 | Screw, Set , 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 82 | 5304529990 | Divider, Lower Basker, Freezer |
|
- | |||||
| 85 | 242139301 | Beam, Support , Divider, Lower Basket |
|
$ 73.71 | |||||
| 87 | 5304507999 | Pinion, Gear |
|
$ 10.62 | |||||
| 88 | 241979601 | Bumper, Rubber , White , Upper Basket |
|
$ 22.68 | |||||
| 90 | 241770705 | Bar, Timing , Gray |
|
$ 50.66 | |||||
| 102 | 5304504279 | Block-handle Mtg |
|
Immediately | $ 18.50 | ||||
| 103 | 242077302 | Screw, #10 Ab Flat Hd |
|
Immediately | $ 7.79 | ||||
| 51A | 5304507977 | Slide Assembly, Basket Lower, Rh, W/pinion |
|
Immediately | $ 252.53 | ||||
| 52A | 5304537226 | S/a Pur-upper Frz Slide Lh Cd |
|
Immediately | $ 45.15 | ||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 14.27 | ||||
| NIB | 242039701 | Screw, Shoulder , #10-16 Type Ab, Upper Slides, W/washer |
|
$ 13.46 | |||||
| NIB | 242039702 | Screw, Shoulder , #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.26 |
