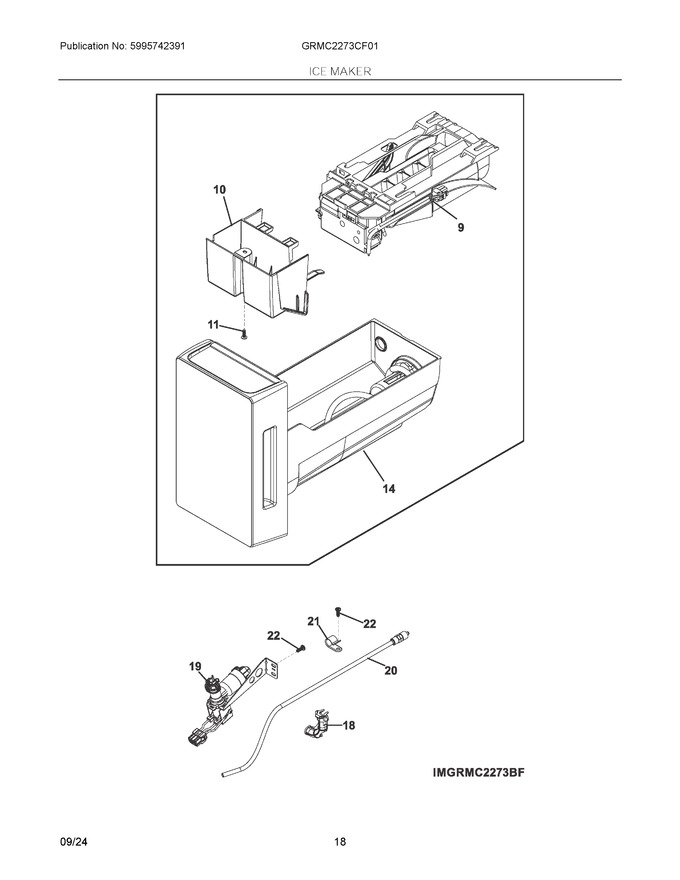

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 9 | 243297608 | Ice Maker, Assembly, Fresh Food, 115 V, Twist Tray |
|
Immediately | $ 164.41 | ||||
| 10 | 5304523076 | Cover, Harness, Ff Ice Maker |
|
Immediately | $ 20.24 | ||||
| 11 | 5304453707 | Screw, Quad Hilo Sts, #8-18 (Replaces: 241953909) |
|
Immediately | $ 15.92 | ||||
| 14 | 5304537045 | Bucket Assembly, Ice Container, W/moving Parts (Replaces: 5304526821) |
|
Immediately | $ 171.22 | ||||
| 18 | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| 19 | 5304536607 | Valve, Water, Single (Replaces: 5304529533) |
|
Immediately | $ 102.65 | ||||
| 20 | 5304532655 | Tube Assembly, Inlet, W/connector |
|
Immediately | $ 73.00 | ||||
| 21 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 22 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| NI | 5304534887 | Clamp, Water Tube (Replaces: 5304526863) |
|
$ 8.87 | |||||
| NI | 811948501 | Cable Tie, 2.5 X 120 |
|
- |
