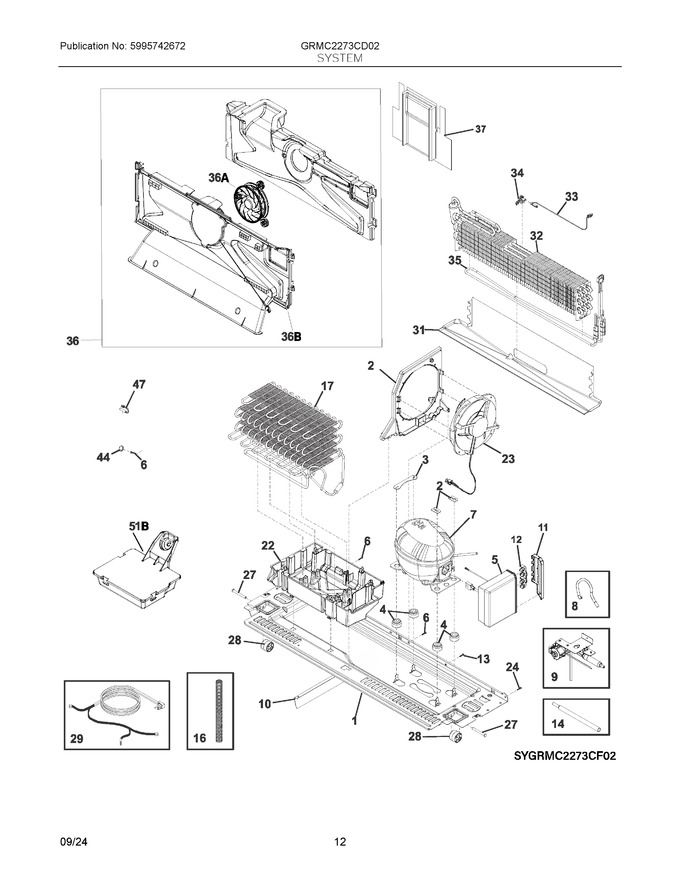

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304519151		Base, Compressor Assy				$ 131.96
2	5304519152		Clamp, Compressor, Single Hole		Appelez-nous	-
3	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 2.89
4	811978901		Grommet, Compressor		Appelez-nous	-
5	5304523061		Control Assembly, Flex Drive			Immediately	$ 342.38
6	811949503		Screw, Truss, 4.2 X 13				$ 3.03
7	5304523062		Compressor, Assembly, Vnd1113y			Immediately	$ 771.31
8	5304526794		Tube, Suction			Immediately	$ 40.60
9	5304529531		Step Valve, Assembly, W/filter Drier			Immediately	$ 186.52
10	5304523064		Flap Bracket, Compressor Base		Appelez-nous	-
11	5304526792		Cover, Flex Drive, Side, Compressor				$ 17.87
12	5304526793		Clamp, Flex Drive, Cable				$ 9.10
13	5304523032		Screw, Trilob, M4 X 7.5		Appelez-nous	-
14	5304523065		Tubing, Extra, Refrigerant				$ 16.07
16	5304519156		Drain Tube, Corrugated				$ 6.07
17	5304538286		Condenser Assembly, Dynamic   (Replaces: 5304519157)			Immediately	$ 190.51
22	5304529527		Drain Pan, Condenser				$ 29.65
23	5304525730		Fan Assembly, Condenser				$ 104.10
24	808199001		Screw, Self Tapping, 6 X 20				$ 7.09
25	5304529530		Shroud, Condenser Fan				$ 16.74
27	811998302		Shaft, Cabinet Roller				$ 10.62
28	811666601		Roller, Cabinet				$ 9.10
29	5304538934		Power Cord, Electric   (Replaces: 5304519161)				$ 55.38
31	5304519162		Drain Trough, Evaporator, Freezer		Appelez-nous	-
32	5304529535		Evaporator, Assembly, Freezer			Immediately	$ 159.46
33	5303918851		Thermostat Kit, Defrost, W/connectors			Immediately	$ 36.75
34	811980406		Clamp, Ntc, Evaporator   (Replaces: 811980402)				$ 4.19
35	140159197049		Heater, Defrost, Evaporator   (Replaces: 5304523054)				$ 103.24
36	5304534880		Cover Assembly, Evaporator, Freezer				$ 156.03
37	5304529534		Duct, Air Return		Appelez-nous	-
44	5304524004		Cover, Screw Hole, White			Immediately	$ 5.07
47	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
36A	5304536608		Motor, Fan				$ 111.33
36B	5304534882		Cover, Evaporator, Freezer, Radial Fan		Appelez-nous	-
51B	5304534915		Cover, Window, Freezer		Appelez-nous	-
NI	811950601		Seal, 6x8, Foam Tape, 154" Roll		Appelez-nous	-
NIA	5304529528		Foam Insulation, Dyco Tube		Appelez-nous	-
NIA	5304523687		Sticker, Plastic Cap, White		Appelez-nous	-
NIA	5304529529		Grommet, Dyco Tube		Appelez-nous	-
NIA	5304532654		Screw, Flex Drive, 4*10 Hi Lo		Appelez-nous	-
