SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

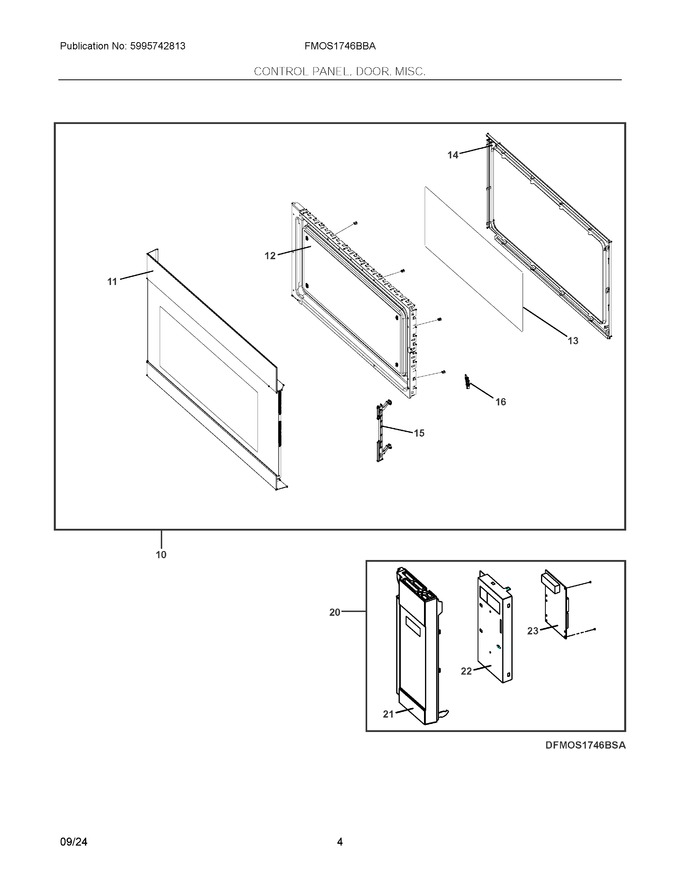

03 - Control Panel, Door, Misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304538407		Door Assembly, Complete, Black		Appelez-nous	-
11	5304538408		Door Assembly, Outer, Black		Appelez-nous	-
12	5304515172		Panel, Inner Door, Black		Appelez-nous	-
13	5304536591		Screen, Door, Internal		Appelez-nous	-
14	5304536588		Gasket, Door, Inner		Appelez-nous	-
15	5304536589		Latch, Door		Appelez-nous	-
16	5304521953		Spring, Door Latch				$ 7.23
20	5304538409		Control Panel, Assembly, Black		Appelez-nous	-
21	5304538410		Control Panel, Assembly, Black		Appelez-nous	-
22	5304536594		Shield, Control		Appelez-nous	-
23	5304536595		User Interface, Control Board				$ 135.45

    View Diagram in Separate Window       Print Part List
