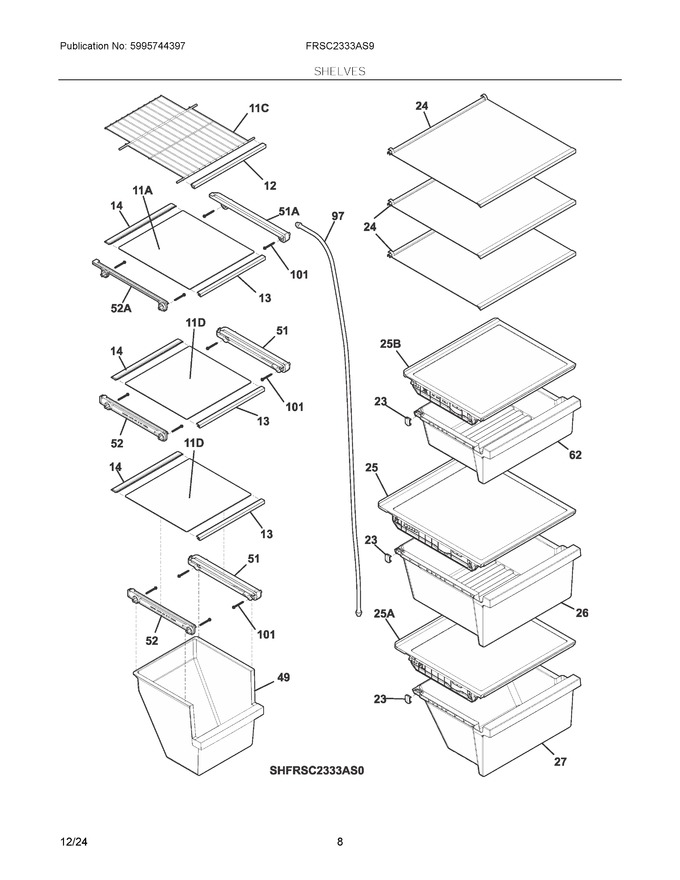

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304527182		Trim, Wire Shelf, White				$ 12.89
13	5304527184		Trim, Glass Shelf, Freezer, Front		Appelez-nous	-
14	5304527130		Trim, Freezer Shelf, Rear				$ 102.38
23	5304525911		Clip, Slide, Crisper			Immediately	$ 10.62
24	5304527173		Shelf Assembly, Glass, White		Appelez-nous	-
25	140116198148		Crisper Cover, Assembly, Glass, Upper, W/trim-gasket   (Replaces: 5304527175)		Appelez-nous	-
26	5304534968		S/a Pur Upper Crisper Pan 23cd		Appelez-nous	-
27	5304534969		S/a Pur Lower Crisper Pan 23cd		Appelez-nous	-
49	5304527155		Basket, Freezer, Sliding		Appelez-nous	-
51	5304526976		Hanger, Basket, Rh				$ 16.69
52	5304526977		Hanger, Basket, Lh				$ 16.69
62	5304534970		S/a Pur Deli Pan 23cd (frig)		Appelez-nous	-
97	242220119		Tube, Water, 97.5", Natural, Ilter, Secondary Valve			Immediately	$ 30.47
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
101A	241637202		Screw, Hex Sems Head, 8-18ab X 1-3/4				$ 5.31
11A	240443358		Shelf-freezer, Glass, Upper				$ 97.07
11C	809078201		Shelf, Pizza		Appelez-nous	-
11D	240443399		Shelf, Freezer, Glass, Lower				$ 101.63
25A	5304527176		Crisper Cover, Assembly, Glass, Lower, W/trim-gasket		Appelez-nous	-
25B	5304527177		Deli Cover, Assembly, Glass, W/trim-gasket		Appelez-nous	-
51A	241514701		Hanger-shelf Glass, Rh				$ 63.79
52A	241514801		Hanger-shelf Glass, Lh				$ 343.75
NIA	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 70.56
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
