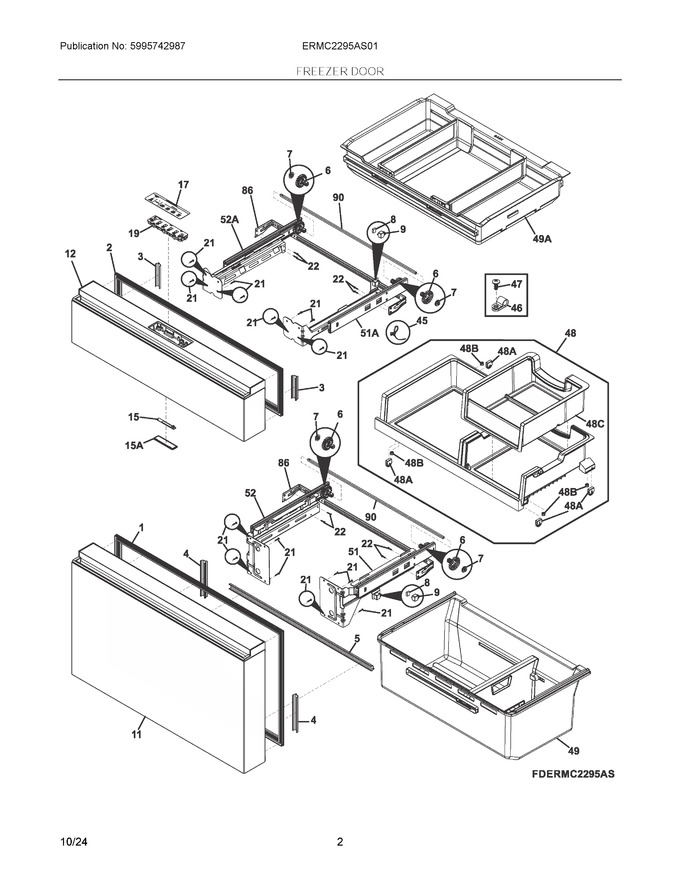

02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304523079		Gasket, Door, Gray, Freezer				$ 78.58
2	5304523080		Gasket, Door, Gray, Middle		Appelez-nous	-
3	5304523081		Gasket, Door, 103mm, Gray, Secondary		Appelez-nous	-
4	5304523083		Gasket, Door, 162mm, Gray, Secondary   (Replaces: 5304523082)		Appelez-nous	-
5	5304523083		Gasket, Door, 754mm, Gray, Frzr Bottom, Secondary		Appelez-nous	-
6	5304519042		Gear, Pinion		Appelez-nous	-
7	5304519043		Bearing, Pad, Gear				$ 9.86
8	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
9	5304523084		Support, Magnet, Gray		Appelez-nous	-
11	5304537804		Door Assembly, Outer, Stainless, Freezer Drawer   (Replaces: 5304523085)				$ 558.23
12	5304523086		Door Assembly, Outer, Stainless, Middle Drawer				$ 612.01
15	5304523011		Light Board, 3 Led Cluster, 6500k			Immediately	$ 48.85
17	5304523087		Overlay, User Interface, Gray, Middle Drawer		Appelez-nous	-
19	5304531769		Pc Board, Display, Middle Drawer   (Replaces: 5304523013)			Immediately	$ 80.23
21	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
22	5304519053		Screw, M3.5 X 6		Appelez-nous	-
45	539151026		Clip, Harness			Immediately	$ 36.14
46	240396804		Clamp, Cable, 1/4   (Replaces: 5304523014)		Appelez-nous	-
47	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
48	5304523088		Drawer Assembly, Freezer, Gray, W/ice Container				$ 205.86
49	5304523089		Basket Assembly, Freezer Drawer, Gray, W/divider				$ 182.16
51	5304523091		Slider, Assembly, Gray, Rh Freezer				$ 232.07
52	5304523093		Slider, Assembly, Gray, Lh Freezer				$ 232.46
86	5304523017		Bracket, Reinforcement		Appelez-nous	-
90	5304524002		Shaft, Slider, Telescopic				$ 59.91
15A	5304519049		Lens, Led Light				$ 10.62
48A	5304519055		Roller, Drawer		Appelez-nous	-
48B	5304523824		Cushion, Rubber, Gray, Freezer Drwr		Appelez-nous	-
48C	5304536668		Container, Drawer Ice, Freezer   (Replaces: 5304523681)				$ 59.45
49A	5304523090		Basket Assembly, Middle Drawer, Gray, W/dividers		Appelez-nous	-
51A	5304523092		Slider, Assembly, Gray, Rh Middle Drw		Appelez-nous	-
52A	5304523094		Slider, Assembly, Gray, Lh Middle Drw		Appelez-nous	-
NIA	5304519084		Screw, Flange Pnhd Phl, 8g X 1/2		Appelez-nous	-
NIA	5304519066		Screw, Phil Pn Hd, M4 X 8		Appelez-nous	-
NIA	5304519048		Harness, Wiring, Middle Drawer			Immediately	$ 141.27
NIBA	811949503		Screw, Truss, 4.2 X 13				$ 3.03
