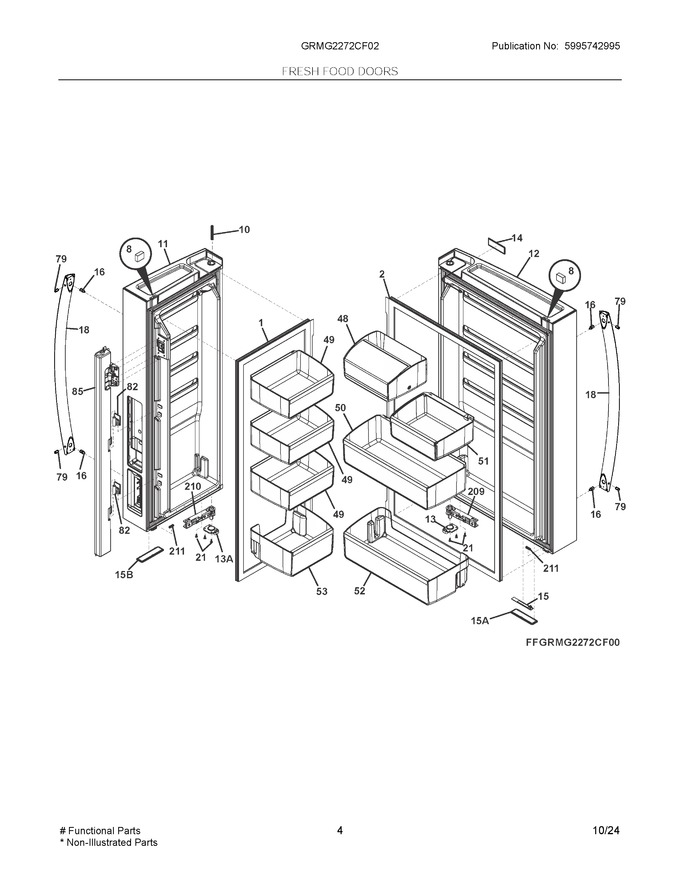

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529569 | Gasket, Door, Lh Fresh Food |
|
$ 189.73 | |||||
| 2 | 5304529576 | Gasket, Door, Rh Fresh Food |
|
$ 191.14 | |||||
| 8 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 18.95 | ||||
| 10 | 5304519067 | Spring, Tube Protection |
|
Immediately | $ 10.62 | ||||
| 11 | 5304538850 | Door Assembly, Outer, Stainless, Lh Fresh Food, Internal Disp. (Replaces: 5304529605) |
|
Immediately | $ 372.50 | ||||
| 12 | 5304537074 | Door Assembly, Stainless, Rh Fresh Food (Replaces: 5304529575) |
|
Immediately | $ 346.18 | ||||
| 13 | 5304519070 | Stop, Assembly, Rh Door |
|
$ 14.41 | |||||
| 14 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 58.15 | ||||
| 15 | 5304523011 | Light Board, 3 Led Cluster, 6500k |
|
Immediately | $ 48.85 | ||||
| 16 | 5304519063 | Screw, Handle Mounting |
|
Immediately | $ 11.48 | ||||
| 18 | 5304529590 | Handle Kit, Fresh Food, Stainless, (2 Handles) |
|
Immediately | $ 235.90 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 48 | 140045259011 | Bin Assembly, Flex, Door, Dairy (Replaces: 5304519073) |
|
$ 76.50 | |||||
| 49 | 5304519075 | Bin, Flex, 2/3 Width, Door |
|
$ 88.63 | |||||
| 50 | 5304526860 | Bin, Flex, Full Width, Door |
|
$ 35.84 | |||||
| 51 | 5304538424 | Bin Assembly, Flex, Door, Slide Adjust (Replaces: 5304519076) |
|
$ 75.92 | |||||
| 52 | 140073434015 | Bin, Fixed, Door Bottom (Replaces: 5304519077) |
|
$ 114.44 | |||||
| 53 | 5304529609 | Bin, Bottle, Lh Door |
|
$ 84.48 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 82 | 5304519080 | Hinge, Flip Mullion |
|
Immediately | $ 11.42 | ||||
| 85 | 5304519081 | Mullion Assembly, Flip, W/heater |
|
Immediately | $ 158.86 | ||||
| 209 | 5304526201 | Closer Assembly, Door, Rh, Mechanical (Replaces: 5304508014) |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Closer Assembly, Door, Lh, Mechanical (Replaces: 5304508015) |
|
Immediately | $ 98.34 | ||||
| 211 | 5304519083 | Bumper, Door, Bottom |
|
- | |||||
| 13A | 5304519071 | Stop, Assembly, Lh Door |
|
$ 14.46 | |||||
| 15A | 5304526839 | Lens, Led Light, Lh Endcap |
|
Immediately | $ 9.10 | ||||
| 15B | 5304529570 | Cover, Light Hole, Grey |
|
$ 9.91 | |||||
| NI | 5304532660 | Alignment Kit, Door Adjustment |
|
- | |||||
| NIA | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| NIA | 5304531674 | Heater, Flip Mullion |
|
Immediately | $ 141.21 | ||||
| NIB | 241641505 | Screw, Hilo Phil Pn, .5", White |
|
- |
