SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram

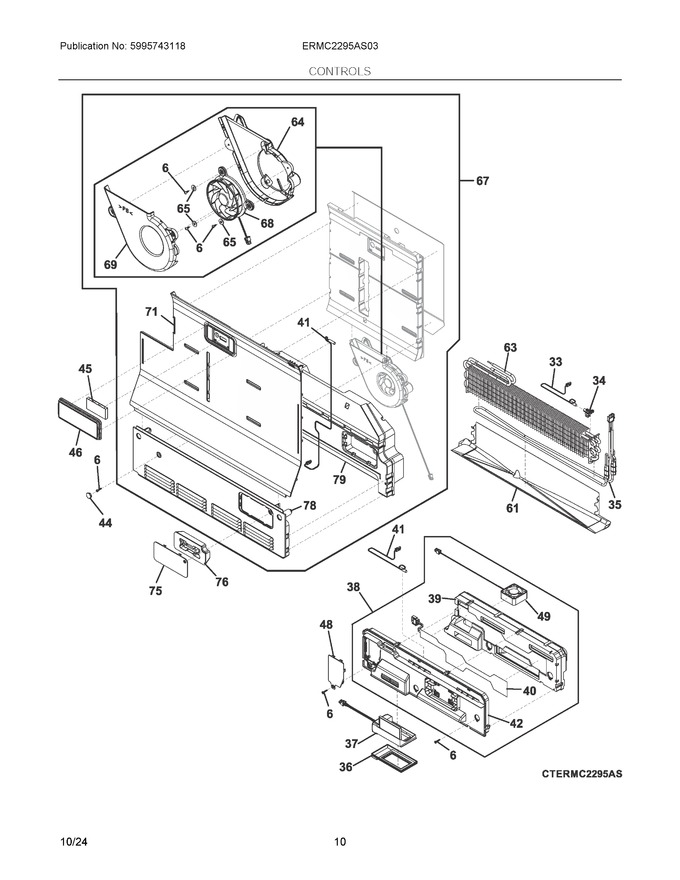

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	811949503		Screw, Truss, 4.2 X 13				$ 3.03
33	5303918851		Thermostat Kit, Defrost, W/connectors			Immediately	$ 36.75
34	811980406		Clamp, Ntc, Evaporator   (Replaces: 811980402)				$ 4.19
35	140159197049		Heater, Defrost, Evaporator   (Replaces: 5304523054)				$ 103.24
36	5304523686		Seal, Baffle Assembly				$ 32.96
37	5304519166		Baffle Assembly, Air Damper, Middle Drawer			Immediately	$ 129.08
38	5304519167		Cover Assembly, Air Flow, Middle Drawer, W/fan-heater				$ 93.40
39	5304523055		Duct Assembly, Air Flow, Middle Drawer		Appelez-nous	-
40	5304523056		Heater Assembly, Middle Drawer				$ 88.93
41	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
42	5304519170		Cover, Air Duct, Middle Drawer		Appelez-nous	-
44	811971602		Cover, Screw Hole, Gray		Appelez-nous	-
45	ELPAULTRA2		Air Filter, Pure Air Ultra2, Elux			Immediately	$ 28.35
46	5304523128		Cover, Air Filter, Fresh Food				$ 44.10
48	5304519172		Cover, Window, Middle Drawer				$ 11.17
49	5304519173		Fan Assembly, Middle Drawer, W/sleeve			Immediately	$ 137.93
61	5304519180		Drain Trough, Evaporator, Fresh Food		Appelez-nous	-
63	5304526811		Evaporator, Assembly, Fresh Food   (Replaces: 5304519181)			Immediately	$ 168.00
64	5304519182		Bracket, Fan Mounting, Ff Evaporator				$ 34.13
65	5304519183		Washer, Flat		Appelez-nous	-
67	5304524898		Cover Assembly, Air Duct, Fresh Food, Complete			Immediately	$ 203.73
68	5304519186		Fan Assembly, Evaporator, Fresh Food			Immediately	$ 152.47
69	5304519187		Housing, Fan, Fresh Food				$ 30.34
71	5304523059		Cover, Air Duct, Stainless, Fresh Food, W/gaskets				$ 240.40
75	5304523129		Cover, Window, Gray, Fresh Food		Appelez-nous	-
76	5304522062		Insulation, Window, Eps, Fresh Food		Appelez-nous	-
78	5304523130		Cover, Evaporator, Gray, Fresh Food				$ 60.17
79	5304523060		Duct, Eveaporator, Fresh Food		Appelez-nous	-
NI	811950601		Seal, 6x8, Foam Tape, 154" Roll		Appelez-nous	-
NIA	5304523826		Sticker, Plastic Cap, Gray		Appelez-nous	-
NIA	811950518		Seal, 6x20x450, Foam				$ 10.34

    View Diagram in Separate Window       Print Part List
