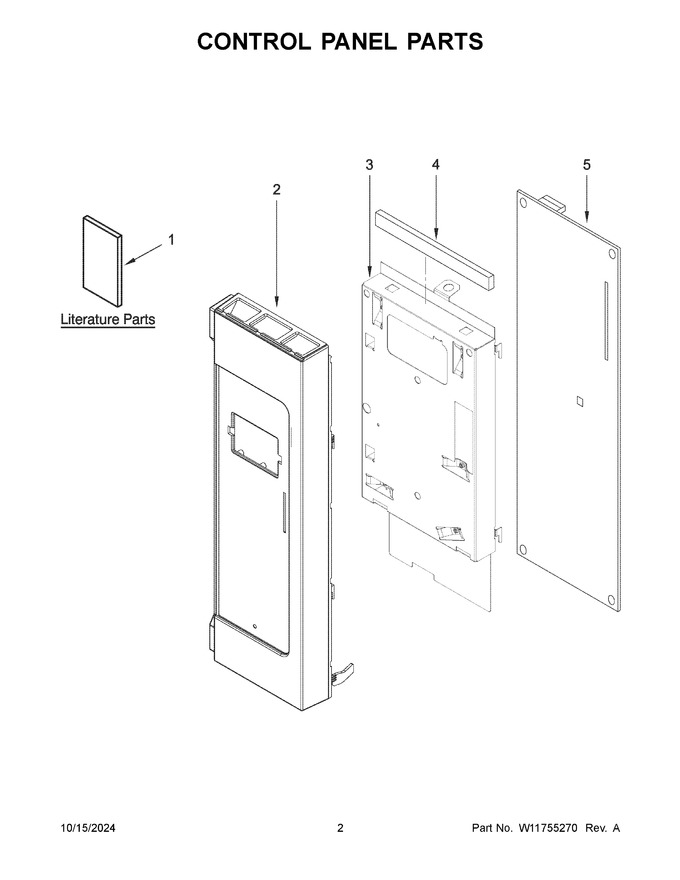

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11698719 | Manual, Owner's |
|
- | |||||
| 2 | W11752339 | Panl-cntrl |
|
Immediately | $ 118.13 | ||||
| 3 | W11752382 | Brkt-cntrl (Replaces: W11701091) |
|
- | |||||
| 4 | W11685342 | Seal, Control Panel (Replaces: W11217976) |
|
- | |||||
| 5 | W11775262 | Pcba, Appliance Control Unit (Replaces: W11753058) |
|
$ 249.49 | |||||
| 1A | W11698721 | Guide, Quick Reference |
|
- | |||||
| 1B | W11698723 | Sheet, Tech |
|
- |
