SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

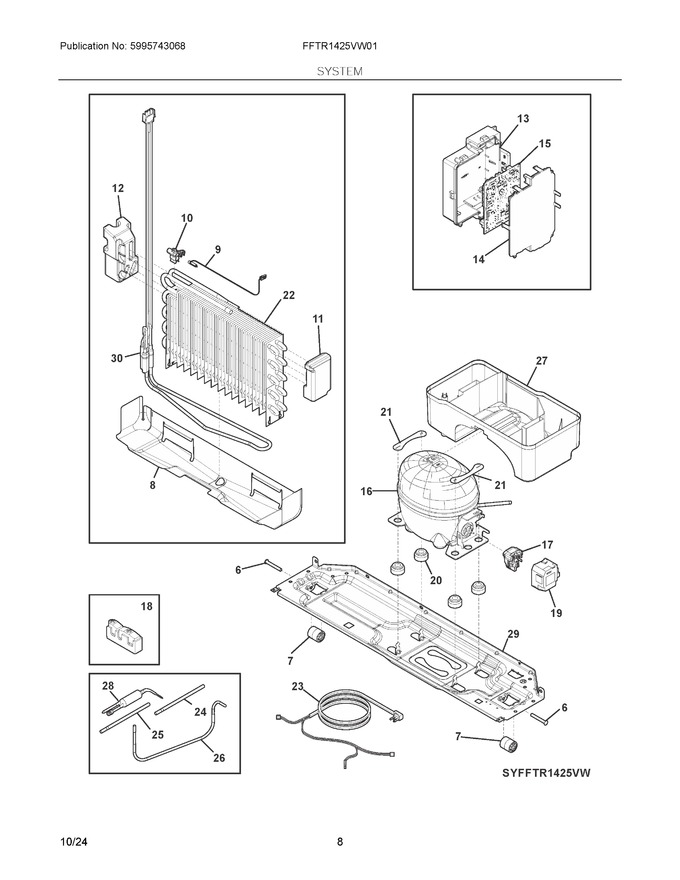

04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	811998301		Shaft, Cabinet Roller		Appelez-nous	-
7	811998202		Roller, Cabinet, Base		Appelez-nous	-
8	5304520498		Tray, Drain, Evaporator				$ 53.09
9	5304520944		Sensor, Temperature			Immediately	$ 20.74
10	811980406		Clamp, Ntc, Evaporator   (Replaces: 811980402)				$ 4.19
11	5304520499		Support, Evaporator, Rh		Appelez-nous	-
12	5304520500		Support, Evaporator, Lh		Appelez-nous	-
13	5304520501		Housing, Control Board, Main		Appelez-nous	-
14	5304525319		Cover, Housing, Control Board   (Replaces: 5304520502)				$ 15.90
15	5304526091		Pc Board, Control, Main, Program			Immediately	$ 255.56
16	808794843		Compressor, Tt1111hy   (Replaces: 808794830)		Appelez-nous	-
17	5304520504		Electricals, Compressor, Tt1111y		Appelez-nous	-
18	242535801		Clamp Assembly, Cable		Appelez-nous	-
19	242563302		Cover, Electricals				$ 20.24
20	811978901		Grommet, Compressor		Appelez-nous	-
21	5304524607		Clamp, Compressor, 2 Hole   (Replaces: 811998601)				$ 2.89
22	5304535336		Evaporator, Assembly				$ 94.07
23	5304520505		Power Cord, Electrical, Service				$ 122.40
24	808293601		Tube, Process				$ 11.48
25	808293603		Tube, Process, 100mm		Appelez-nous	-
26	5304535337		Tube, Jumper, Condenser		Appelez-nous	-
27	5304534928		Drain Pan, Compressor Mtg.   (Replaces: 5304520506)			Immediately	$ 14.85
28	A19676501		Filter, Drier, Service			Immediately	$ 99.73
29	8588078227135		Base Assembly, Compressor   (Replaces: 807822703)		Appelez-nous	-
30	140159197031		Heater, Defrost, Evaporator   (Replaces: 5304520507)		Appelez-nous	-
NI	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
NI	808337903		Screw, Pf Ab Pfz Ph, 3.5x1.27x32				$ 5.31
NIA	5304519110		Screw, Trilob, M3 X 6				$ 3.03

    View Diagram in Separate Window       Print Part List
