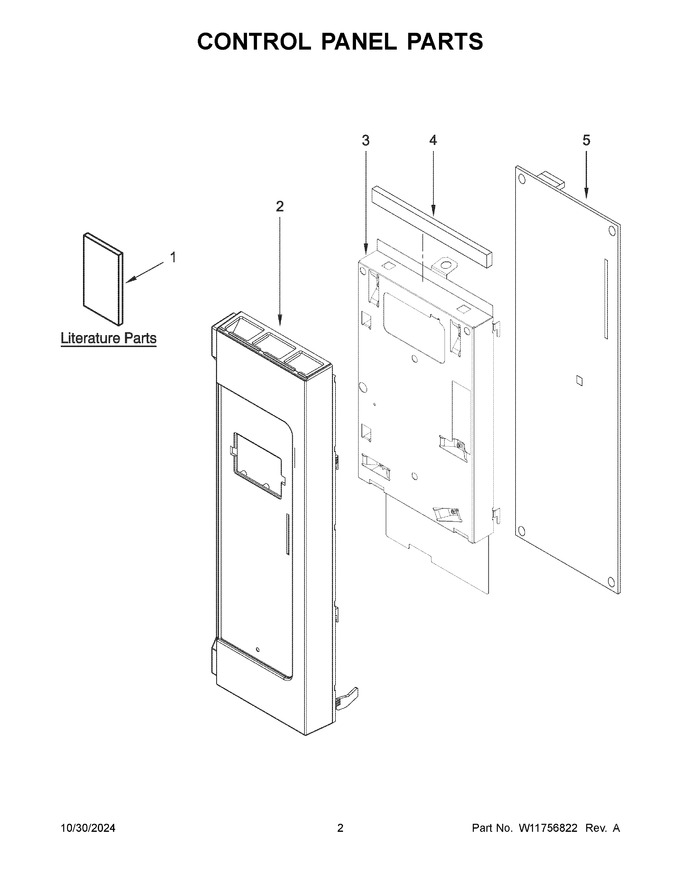

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11496338 | Instructions, Installation |
|
- | |||||
| 2 | W11175576 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) (Replaces: W11173817) |
|
Immediately | $ 299.14 | ||||
| 3 | W11676791 | Backer, Control (Replaces: W10833365) |
|
$ 48.91 | |||||
| 4 | W11685342 | Seal, Control Panel (Replaces: W11217976) |
|
- | |||||
| 5 | W11552018 | Pcba, Appliance Control Unit (Replaces: W10849829) |
|
Immediately | $ 113.15 | ||||
| 1A | W10918338 | Manual, Owner's |
|
- | |||||
| 1B | W10835580 | Label, Cook Guide |
|
- | |||||
| 1C | W11561750 | Sheet, Tech |
|
- |
