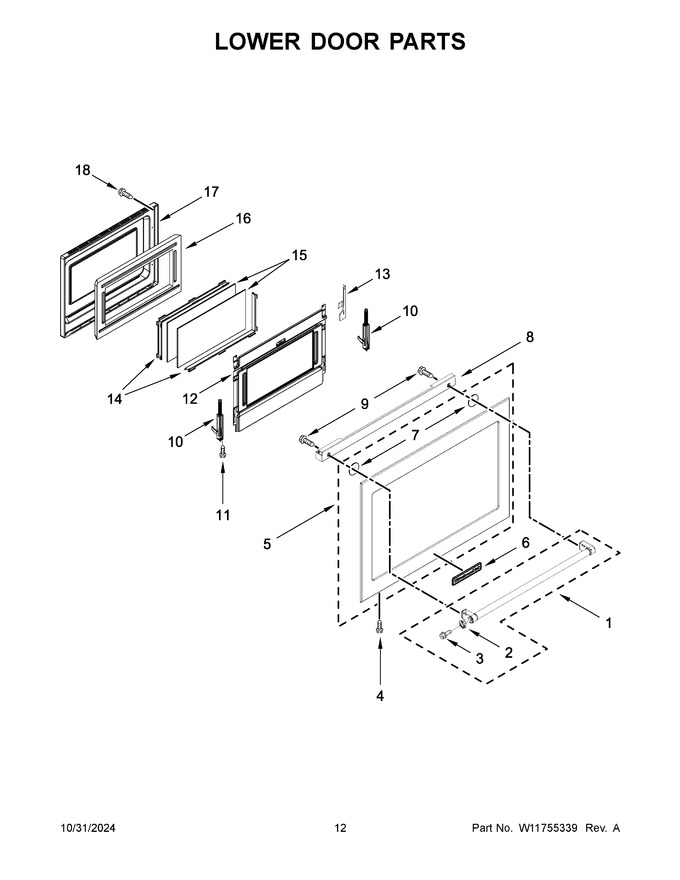

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11305107 | Assembly, Handle (black) |
|
$ 166.80 | |||||
| 2 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 19.84 | ||||
| 3 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 7.19 | ||||
| 4 | W11690596 | Screw With Washer (Replaces: W10284411) |
|
$ 17.40 | |||||
| 5 | W11763632 | Outer Door Assembly (stainless) (Replaces: W11493748) |
|
$ 890.18 | |||||
| 6 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 65.31 | ||||
| 7 | 7109P08460 | Washer, Fiber |
|
- | |||||
| 8 | W10575689 | Bracket, Handle |
|
$ 125.14 | |||||
| 9 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.09 | ||||
| 10 | WPW10335434 | Hinge, Door (left) (Replaces: W10335434) |
|
Immediately | $ 88.20 | ||||
| 11 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 12 | W10340464 | Retainer, Insulation |
|
$ 248.40 | |||||
| 13 | WPW10272329 | Receiver (left) (Replaces: W10272329) |
|
$ 69.53 | |||||
| 14 | WPW10272594 | Frame, Glass (Replaces: W10272594) |
|
Immediately | $ 169.19 | ||||
| 15 | WP9757706 | Glass, Inner (Replaces: 9757706) |
|
Immediately | $ 127.76 | ||||
| 16 | WPW10321285 | Insulation, Door (Replaces: W10321285) |
|
$ 91.22 | |||||
| 17 | WPW10292008 | Lining, Door (Replaces: W10292008) |
|
$ 296.87 | |||||
| 18 | W11712404 | Screw (Replaces: W10898280) |
|
Immediately | $ 12.66 | ||||
| 10A | WPW10335433 | Hinge, Door (right) (Replaces: W10335433) |
|
$ 89.99 | |||||
| 13A | WPW10272328 | Receiver (right) (Replaces: W10272328) |
|
$ 77.18 |
