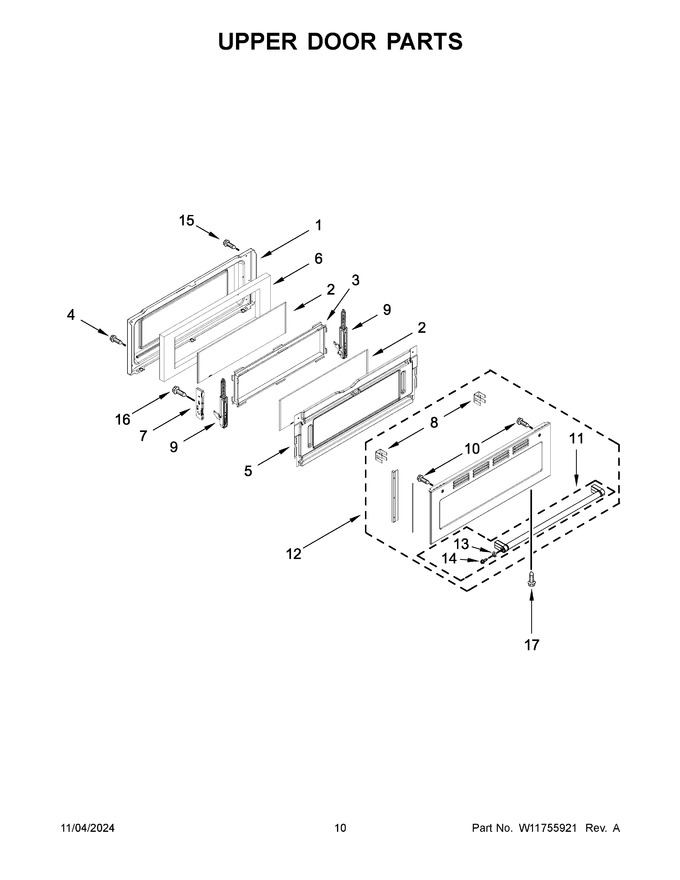

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11051040 | Lining, Door |
|
$ 258.00 | |||||
| 2 | W11132120 | Glass, Inner (Replaces: W11099272) |
|
$ 153.71 | |||||
| 3 | WPW10272708 | Frame, Glass (Replaces: W10272708) |
|
$ 147.37 | |||||
| 4 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.47 | ||||
| 5 | W10485723 | Retainer, Insulation |
|
$ 216.36 | |||||
| 6 | WPW10321271 | Insulation, Door (Replaces: W10321271) |
|
$ 85.01 | |||||
| 7 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 8.39 | ||||
| 8 | W10575917 | Spacer, Vent Trim |
|
$ 11.38 | |||||
| 9 | WPW10485733 | Hinge, Door (left) (Replaces: W10485733) |
|
Immediately | $ 53.63 | ||||
| 10 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.09 | ||||
| 11 | W11305107 | Assembly, Handle (black) |
|
$ 166.80 | |||||
| 12 | W11156495 | Assembly, Door 9black Stainless) (Replaces: W10861414) |
|
$ 733.37 | |||||
| 13 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 19.84 | ||||
| 14 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 7.19 | ||||
| 15 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 6.98 | ||||
| 16 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 17 | W11690596 | Screw With Washer (Replaces: W10284411) |
|
$ 17.40 | |||||
| 9A | WPW10485732 | Hinge, Door (right) (Replaces: W10485732) |
|
Immediately | $ 50.18 |
