SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop, Burner And Grate Parts

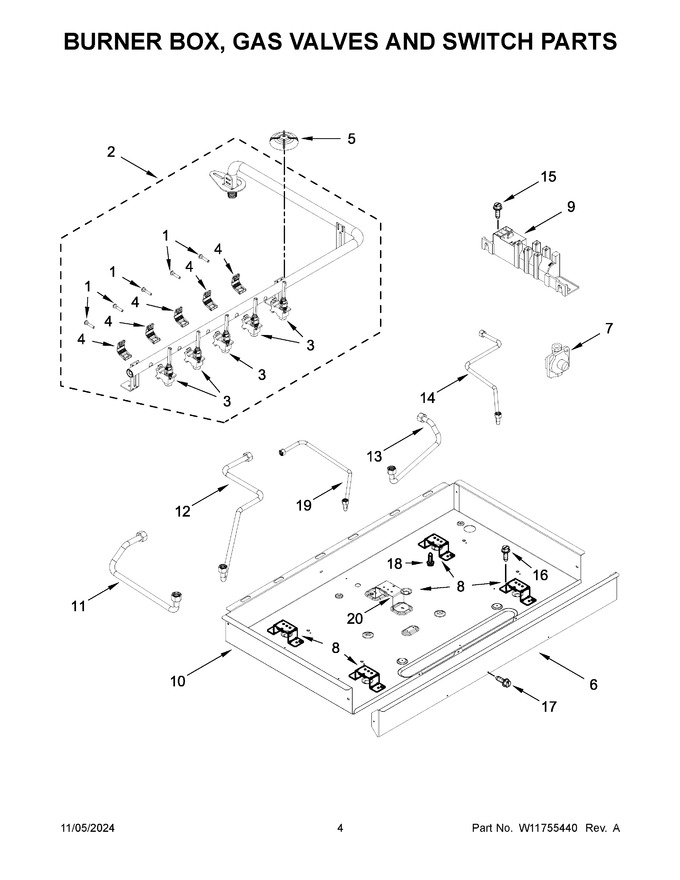

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.15
2	W11703401		Manifold Assembly   (Replaces: W11576641)		Appelez-nous	-
3	W11702872		Valve, Single (left Front)   (Replaces: W11629615)				$ 26.90
4	8287055		Bracket, Single Valve				$ 65.54
5	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 17.40
6	W11703402		Panel, Front   (Replaces: W11620861)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
8	W11703070		Bracket, Orifice Holder   (Replaces: W11566469)		Appelez-nous	-
9	W11703692		Spark Module   (Replaces: W11350452)			Immediately	$ 82.85
10	ARI55514D8BCAB29AE100450EFDED77D6CF		Box, Burner (not Serviced)		Appelez-nous	-
11	W11703693		Tube, Gas (left Front)   (Replaces: W11573975)		Appelez-nous	-
12	W11703694		Tube, Gas (left Rear)   (Replaces: W11573977)		Appelez-nous	-
13	W11703696		Tube, Gas (right Front)   (Replaces: W11573979)		Appelez-nous	-
14	W11703697		Tube, Gas (right Rear)   (Replaces: W11573978)		Appelez-nous	-
15	7101P42660		Screw		Appelez-nous	-
16	W10443110		Screw			Immediately	$ 13.07
17	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
18	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 12.65
19	W11703695		Tube, Gas (center)   (Replaces: W11573983)		Appelez-nous	-
20	W11726567		Bracket, Orifice Holder Center Burner   (Replaces: W11704153)		Appelez-nous	-
3A	W11702873		Valve, Single (left Rear)   (Replaces: W11629616)				$ 26.00
3B	W11703063		Valve, Single (right Rear)   (Replaces: W11629617)				$ 26.00

    View Diagram in Separate Window       Print Part List
