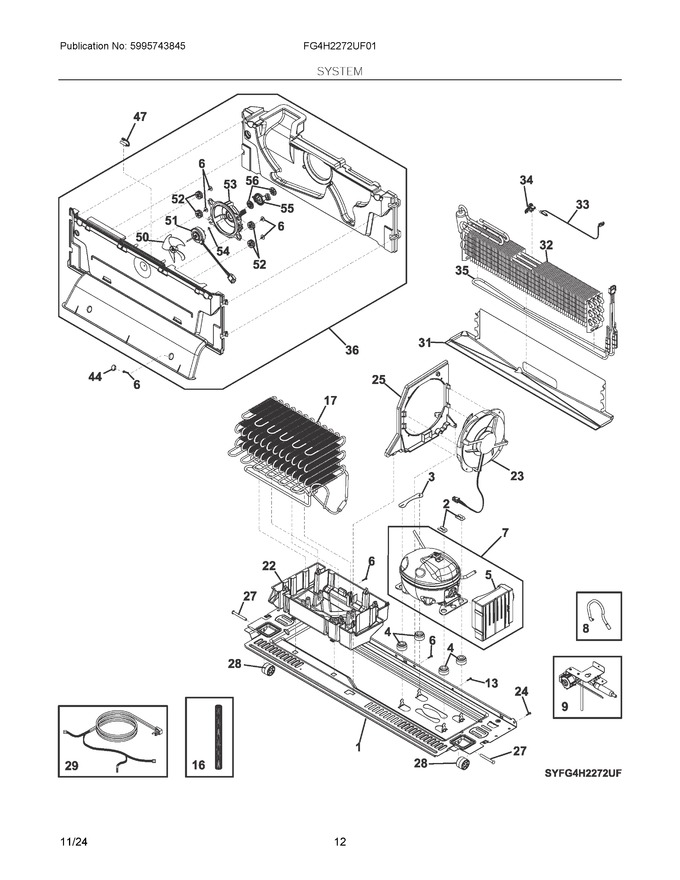

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304519151 | Base, Compressor Assy |
|
$ 131.96 | |||||
| 2 | 5304519152 | Clamp, Compressor, Single Hole |
|
- | |||||
| 3 | 5304524607 | Clamp, Compressor, 2 Hole (Replaces: 811998601) |
|
$ 2.89 | |||||
| 4 | 811978901 | Grommet, Compressor |
|
- | |||||
| 5 | 242508216 | Inverter, Compressor |
|
Immediately | $ 677.98 | ||||
| 6 | 811949503 | Screw, Truss, 4.2 X 13 |
|
$ 3.03 | |||||
| 7 | 5304519153 | Compressor, Assembly, W/inverter |
|
- | |||||
| 8 | 5304519154 | Tube, Suction |
|
Immediately | $ 38.48 | ||||
| 9 | 5304529531 | Step Valve, Assembly, W/filter Drier (Replaces: 5304519155) |
|
Immediately | $ 186.52 | ||||
| 13 | 5304519110 | Screw, Trilob, M3 X 6 |
|
$ 3.03 | |||||
| 16 | 5304519156 | Drain Tube, Corrugated |
|
$ 6.07 | |||||
| 17 | 5304538286 | Condenser Assembly, Dynamic (Replaces: 5304519157) |
|
Immediately | $ 190.51 | ||||
| 22 | 5304529527 | Drain Pan, Condenser (Replaces: 5304519158) |
|
$ 29.65 | |||||
| 23 | 5304525730 | Fan Assembly, Condenser (Replaces: 5304519159) |
|
$ 104.10 | |||||
| 24 | 808199001 | Screw, Self Tapping, 6 X 20 |
|
$ 7.09 | |||||
| 25 | 5304529530 | Shroud, Condenser Fan (Replaces: 5304519160) |
|
$ 16.74 | |||||
| 27 | 811998302 | Shaft, Cabinet Roller |
|
$ 10.62 | |||||
| 28 | 811666601 | Roller, Cabinet |
|
$ 9.10 | |||||
| 29 | 5304538934 | Power Cord, Electric (Replaces: 5304519161) |
|
$ 55.38 | |||||
| 31 | 5304519162 | Drain Trough, Evaporator, Freezer |
|
- | |||||
| 32 | 5304529535 | Evaporator, Assembly, Freezer (Replaces: 5304519163) |
|
Immediately | $ 159.46 | ||||
| 33 | 5303918851 | Thermostat Kit, Defrost, W/connectors |
|
Immediately | $ 36.75 | ||||
| 34 | 811980406 | Clamp, Ntc, Evaporator (Replaces: 811980402) |
|
$ 4.19 | |||||
| 35 | 140159197049 | Heater, Defrost, Evaporator (Replaces: 5304519164) |
|
$ 103.24 | |||||
| 36 | 5304523067 | Cover Assembly, Evaporator, Freezer, W/fan Assy (Replaces: 5304519165) |
|
Immediately | $ 141.49 | ||||
| 44 | 811971601 | Cover, Screw Hole |
|
- | |||||
| 47 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 23.74 | ||||
| 50 | 811699604 | Blade, Evaporator Fan (Replaces: 811699602) |
|
Immediately | $ 4.19 | ||||
| 51 | 809069207 | Motor, Fan, Frz Evaporator |
|
Immediately | $ 148.78 | ||||
| 52 | 5304519174 | Grommet, Fan Shround, Freezer |
|
- | |||||
| 53 | 5304519175 | Shroud, Fan, Freezer |
|
$ 12.76 | |||||
| 54 | 5304519176 | Washer, Slinger, Nylon |
|
$ 3.03 | |||||
| 55 | 5304519177 | Clip, Retainer |
|
$ 8.34 | |||||
| 56 | 5304519178 | Grommet, Fan Mounting |
|
Immediately | $ 7.59 | ||||
| NI | 811950601 | Seal, 6x8, Foam Tape, 154" Roll |
|
- |
