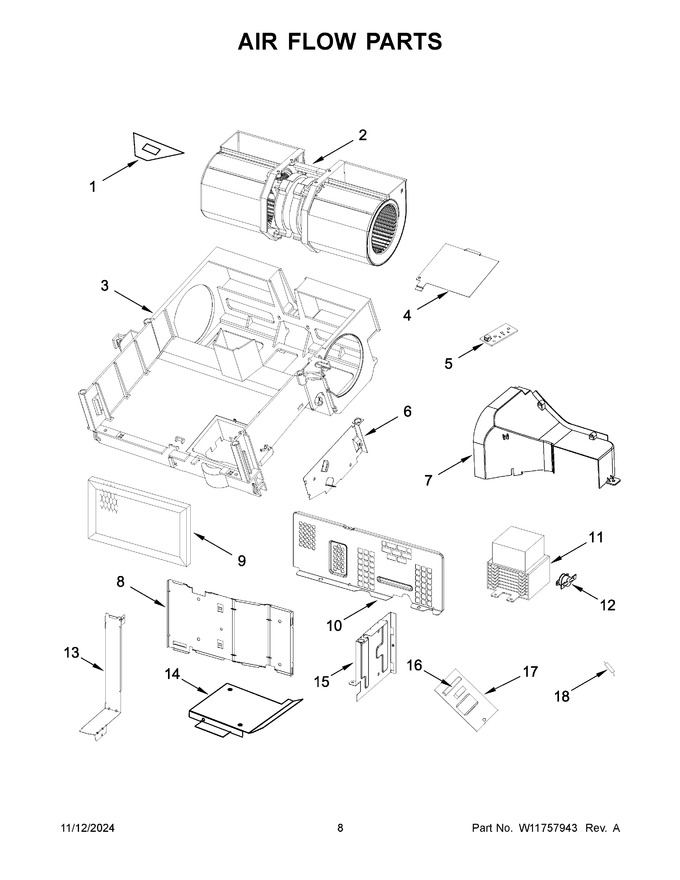

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 2 | W11753213 | Motor, Hood Fan (Replaces: W11729458) |
|
- | |||||
| 3 | W11268295 | Baseplate, Air Guide |
|
$ 58.79 | |||||
| 4 | W11752401 | Holder, Led (Replaces: W11698304) |
|
- | |||||
| 5 | W11443139 | Lamp, Led (Replaces: W11384716) |
|
$ 72.69 | |||||
| 6 | W11293488 | Cover, Right Duct |
|
$ 72.07 | |||||
| 7 | W10471570 | Deflector, Air |
|
- | |||||
| 8 | W10827799 | Plate, Air Guide Sealing |
|
- | |||||
| 9 | W10892387 | Filter, Charcoal (Replaces: W10845250) |
|
Immediately | $ 15.95 | ||||
| 10 | W11520832 | Shield, Finger |
|
- | |||||
| 11 | W10754299 | Magnetron |
|
Immediately | $ 208.09 | ||||
| 12 | W10832024 | Thermostat, Magnetron |
|
$ 77.93 | |||||
| 13 | W10828038 | Cover, Airguide Inlet |
|
- | |||||
| 14 | W10845672 | Guide, Air |
|
- | |||||
| 15 | W10828079 | Plate, Right Sealing |
|
- | |||||
| 16 | W11707984 | Fuse (Replaces: W10422951) |
|
Immediately | $ 41.27 | ||||
| 17 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 18 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 |
