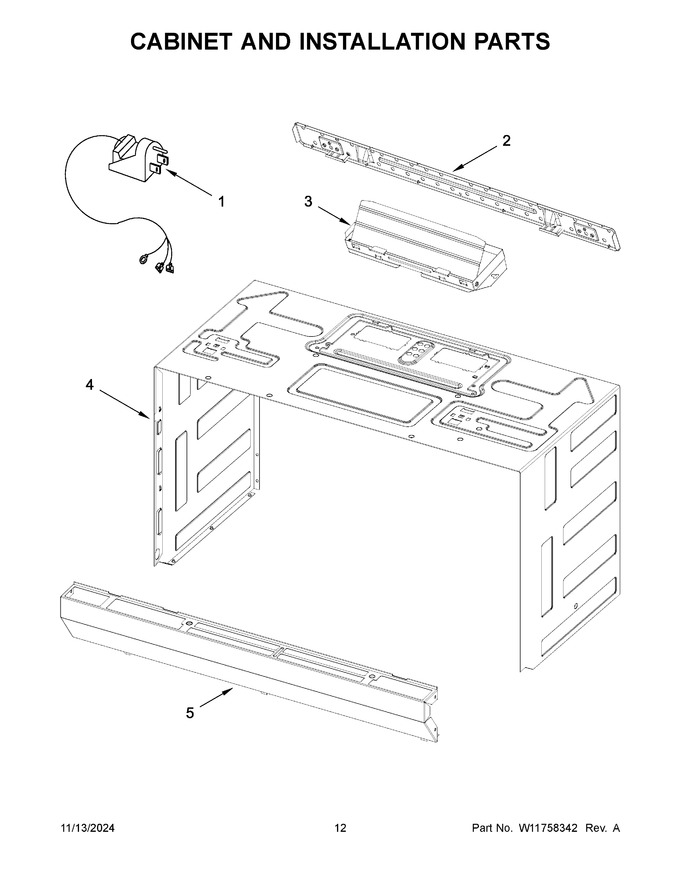

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 18.48 | |||||
| 2 | W11025649 | Plate, Mounting |
|
Immediately | $ 21.16 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W11783245 | Case, Outer (white) (Replaces: W11446917) |
|
Immediately | $ 156.14 | ||||
| 5 | W11648232 | Grille, Vent (white) |
|
- | |||||
| 4A | W11776420 | Case, Outer (black) (Replaces: W11446916) |
|
Immediately | $ 156.14 | ||||
| 4B | W11446918 | Case, Outer (biscuit) |
|
- | |||||
| 5A | W11796380 | Grille, Vent (black) (Replaces: W11648231) |
|
$ 84.29 | |||||
| 5B | W10845638 | Grille, Vent (biscuit) |
|
- | |||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 6.47 | ||||
| NI | W11752402 | Miscellaneous Parts, Harness, Main (Replaces: W11677242) |
|
- | |||||
| NI | W11752404 | Miscellaneous Parts, Harness, Iic Cable For Touch (Replaces: W11677241) |
|
- | |||||
| NI | W11355486 | Miscellaneous Parts, Harness, Door Signal Switch |
|
- | |||||
| NI | W11301790 | Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer |
|
Immediately | $ 131.14 | ||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 88.90 | ||||
| NI | W11752405 | Miscellaneous Parts, Jump Wire, A38 Hmi (Replaces: W11677243) |
|
- |
