View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

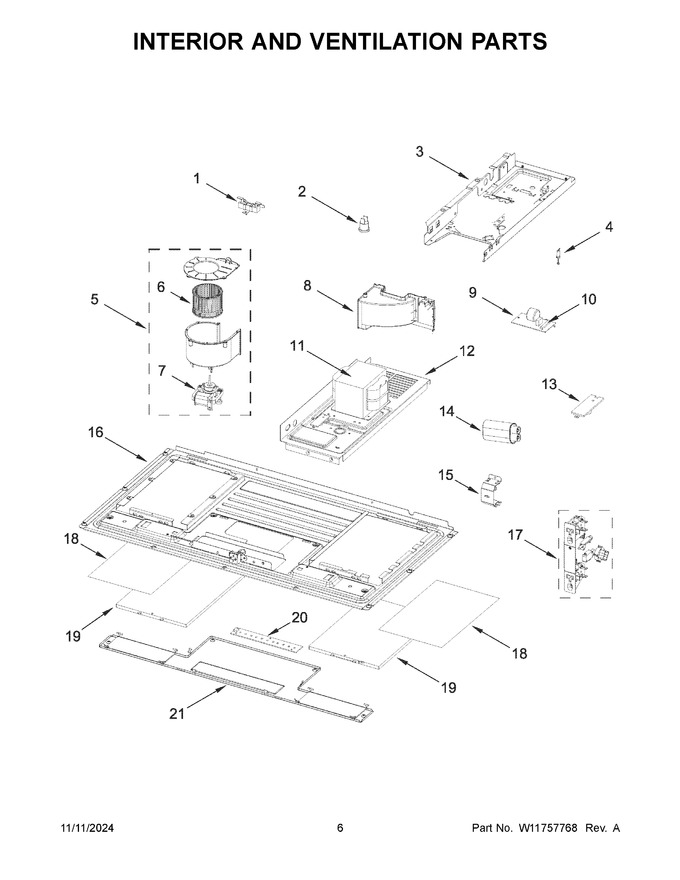

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11259893 | Resistor, Cement |
|
- | |||||
| 2 | W11378281 | Thermostat, Cavity |
|
$ 32.05 | |||||
| 3 | W11440761 | Plate, Chassis |
|
- | |||||
| 4 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- | |||||
| 5 | W11662648 | Assembly, Cooling Fan (Replaces: W11615947) |
|
Immediately | $ 97.71 | ||||
| 6 | W11088354 | Wheel, Cooling Fan |
|
Immediately | $ 85.74 | ||||
| 7 | W11443154 | Motor, Cooling Fan (Replaces: W11325927) |
|
Immediately | $ 79.76 | ||||
| 8 | W11088358 | Air Guide, Magnetron |
|
- | |||||
| 9 | W11455475 | Board, Noise Filter (Replaces: W11425905) |
|
$ 113.42 | |||||
| 10 | W11707984 | Fuse (Replaces: W10422951) |
|
Immediately | $ 41.27 | ||||
| 11 | W11745058 | Transformer, High Voltage (Replaces: W11485385) |
|
$ 125.82 | |||||
| 12 | W11164809 | Chassis, Transformer |
|
$ 111.48 | |||||
| 13 | W10536989 | Thermistor, Pcba |
|
Immediately | $ 33.16 | ||||
| 14 | 8206562 | Capacitor, High Voltage |
|
Immediately | $ 108.83 | ||||
| 15 | W11095808 | Bracket, Capacitor |
|
- | |||||
| 16 | W11745219 | Plate, Bottom (Replaces: W11702622) |
|
- | |||||
| 17 | W11743213 | Assembly, Interlock (Replaces: W11742963) |
|
$ 77.65 | |||||
| 18 | W11745046 | Filter, Charcoal (Replaces: W11695796) |
|
Immediately | $ 23.62 | ||||
| 19 | W11745049 | Filter, Grease (Replaces: W11744871) |
|
$ 26.45 | |||||
| 20 | W11745232 | Strip, Led Light (Replaces: W11686084) |
|
- | |||||
| 21 | W11742966 | Assembly, Glass Holder |
|
- |
