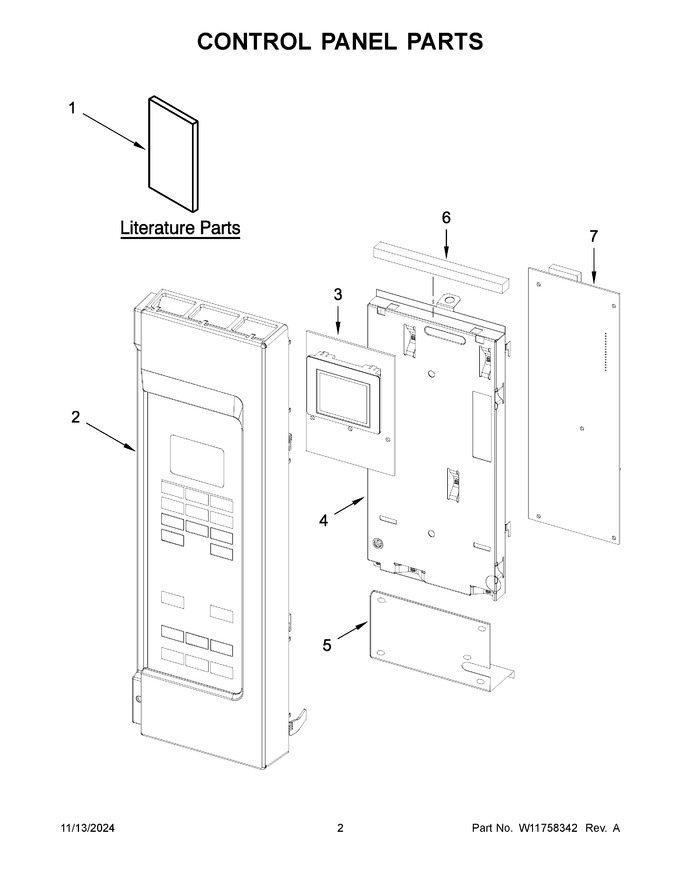

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11698718 | Manual, Owner's |
|
- | |||||
| 2 | W11722789 | Assembly, Control Panel (white) |
|
- | |||||
| 3 | W11752391 | Pcba, User Interface (Replaces: W11679747) |
|
- | |||||
| 4 | W11753212 | Bracket, Control (Replaces: W11698816) |
|
- | |||||
| 5 | W11752396 | Backer, Lower (Replaces: W11730731) |
|
- | |||||
| 6 | W11685342 | Seal, Control Panel (Replaces: W11217976) |
|
- | |||||
| 7 | W11752393 | Pcba, Appliance Control Unit (Replaces: W11672150) |
|
$ 178.77 | |||||
| 1A | W11709976 | Guide, Quick Reference |
|
- | |||||
| 1B | W11709342 | Sheet, Tech |
|
- | |||||
| 2A | W11722788 | Assembly, Control Panel (black) |
|
- | |||||
| 2B | W11722784 | Assembly, Control Panel (biscuit) |
|
- | |||||
| 2C | W11752350 | Assembly, Control Panel (stainless) |
|
- | |||||
| 2D | W11752351 | Assembly, Control Panel (black Stainless) |
|
- |
