SELECT A DIAGRAM

01 - Cover Sheet

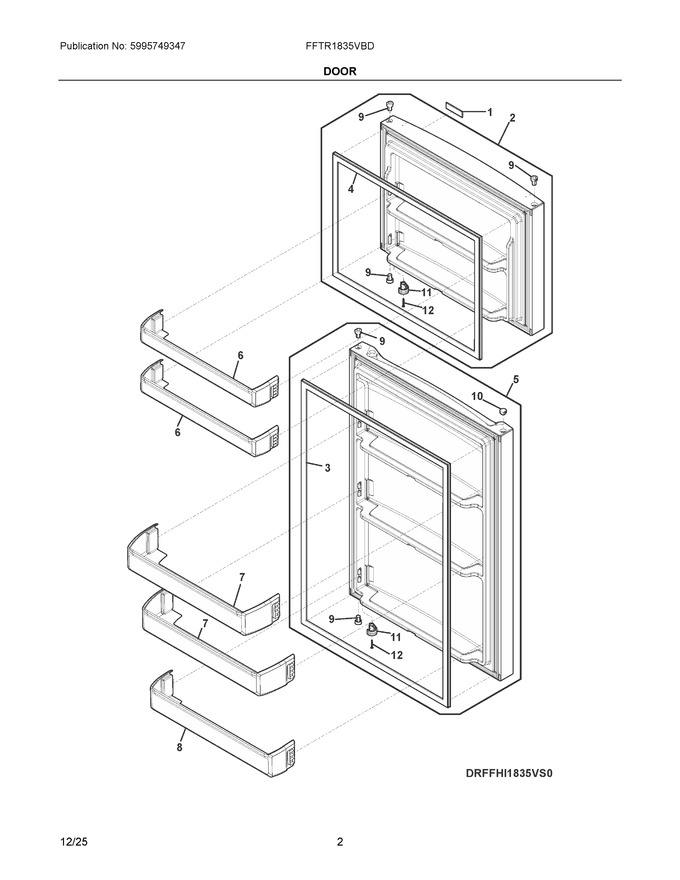

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511145		Badge, Frigidaire, Black				$ 4.55
2	5304539235		Door-frz Foamed 30w Pk Blk   (Replaces: 5304538092)		Appelez-nous	-
3	5304528903		Gasket, Door, Gray, Fresh Food			Immediately	$ 205.12
4	5304528904		Gasket, Door, Gray, Freezer			Immediately	$ 180.01
5	5304539233		Door-ff Foamed 30w Pk Blk   (Replaces: 5304538091)		Appelez-nous	-
6	5304519702		Bin, Door, White, Freezer			Immediately	$ 50.63
7	5304522123		Bin, Door, 6", White, Refrigerator			Immediately	$ 70.75
8	5304519703		Bin, Door, 4", White, Refrigerator			Immediately	$ 22.42
9	5304522193		Bearing, Hinge, Black				$ 7.59
10	5304522186		Cover, Hinge Bearing, Black		Appelez-nous	-
11	5304536274		Stopper, Door, Black, Stopper				$ 3.77
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38

    View Diagram in Separate Window       Print Part List
