SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet


03 - Control Panel, Door, Misc.


04 - Wiring Diagram

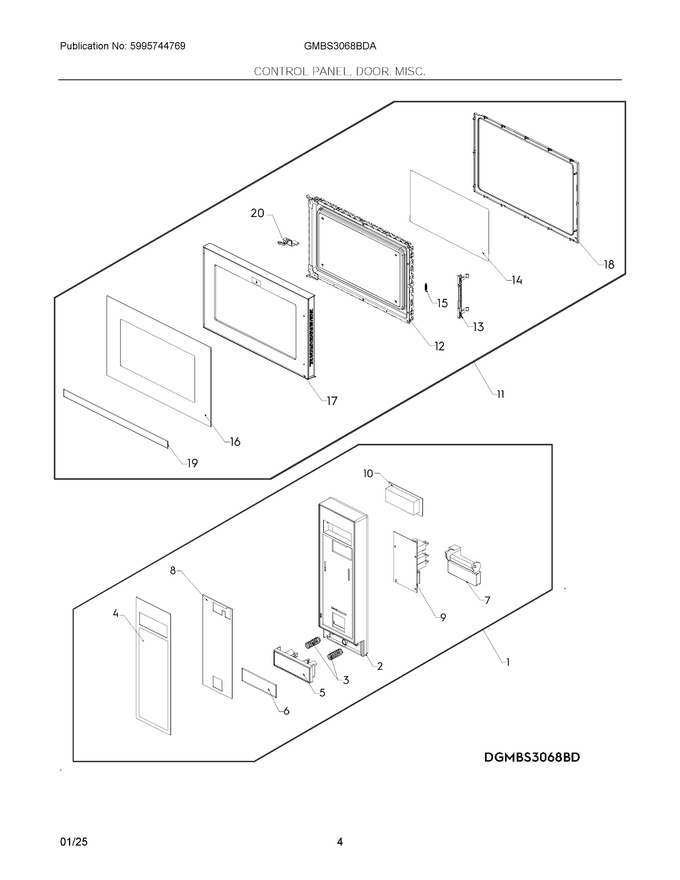

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056017736		Control Panel, Assembly, Black Stainless		Appelez-nous	-
2	5304532531		Control Panel, Black		Appelez-nous	-
3	5304519324		Spring, Door Button				$ 5.07
4	4056017744		Overlay, Touch Pad, Black		Appelez-nous	-
5	5304532533		Button, Door Open, Black				$ 14.55
6	5304537453		Button, Trim, Black		Appelez-nous	-
7	5304519325		Lever, Door Opening			Immediately	$ 12.44
8	4056017751		Pcb Touch Board, User Interface			Immediately	$ 48.91
9	5304537454		Pc Board, Control, Main				$ 136.27
10	5304532537		Pc Board, Display		Appelez-nous	-
11	4056017769		Door Assembly, Complete, Black Stainless		Appelez-nous	-
12	5304519329		Frame, Assembly, Door		Appelez-nous	-
13	5304537448		Latch Assembly, Door		Appelez-nous	-
14	5304532539		Screen, Door, Inner		Appelez-nous	-
15	5304519334		Spring, Door Latch				$ 5.21
16	5304532540		Overlay, Door, Black, Outer				$ 177.84
17	5304532541		Door Panel, Outer, Black		Appelez-nous	-
18	5304519332		Gasket, Door				$ 33.51
19	5304537456		Trim Door, Button, Black		Appelez-nous	-
20	5304519333		Hinge, Door, Upper				$ 24.62

    View Diagram in Separate Window       Print Part List
