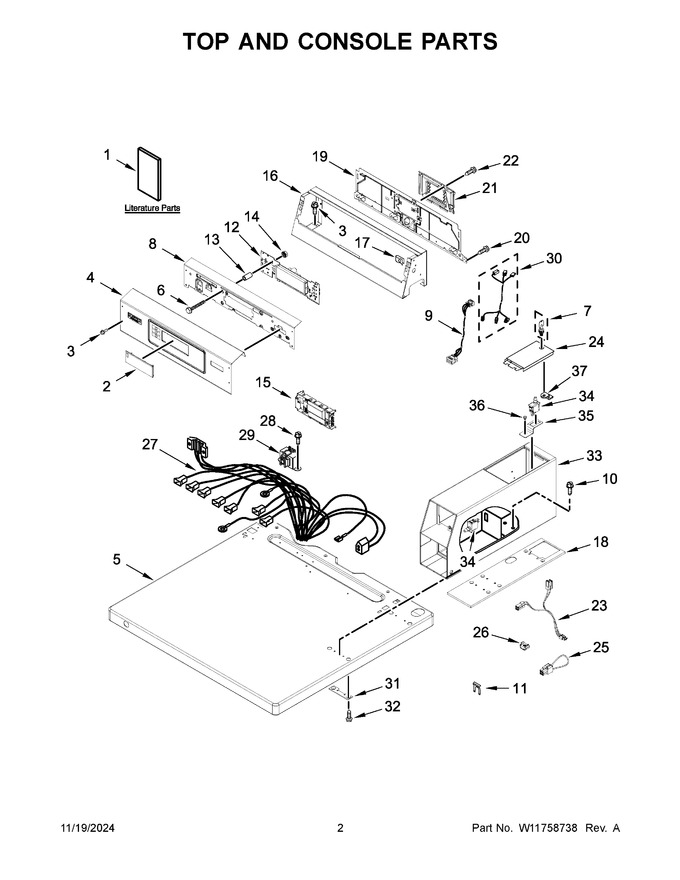

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11696098		Installation Instructions, Exp Gr, It, Hu		Appelez-nous	-
2	W11637765		Cover, Display   (Replaces: W11565137)				$ 59.65
3	WPW10131119		Screw   (Replaces: W10386302)				$ 6.26
4	W11113915		Facia   (Replaces: W10845283)		Appelez-nous	-
5	WPW10136707		Top (white)   (Replaces: W10136707)				$ 320.56
6	W11117300		Screw   (Replaces: W10137322)		Appelez-nous	-
7	W11315637		777 Lock And Key, Complete   (Replaces: W11113382)			Immediately	$ 36.42
8	W11743883		Bracket, Control   (Replaces: W11407434)		Appelez-nous	-
9	W11743888		Harness, Ui   (Replaces: W11554061)		Appelez-nous	-
10	W11715721		Bolt   (Replaces: 3349065)				$ 6.41
11	W11704629		Relief, Strain (power Cord)   (Replaces: 8316644)		Appelez-nous	-
12	W11759236		Control, User Interface   (Replaces: W11456058)		Appelez-nous	-
13	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
14	WPW10139046		Nut   (Replaces: W10139046)				$ 7.91
15	W11743884		Control Board   (Replaces: W11487487)		Appelez-nous	-
16	W10461094		Console				$ 159.97
17	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 6.94
18	WP3954812		Cushion, Meter Case   (Replaces: 3954812)				$ 27.99
19	W11759238		Panel, Rear Console   (Replaces: W11447698)		Appelez-nous	-
20	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.01
21	W10601020		Cover, Terminal Block		Appelez-nous	-
22	W11808444		Screw   (Replaces: 98139)		Appelez-nous	-
23	W11096090		Harness, Wire (service Switch)   (Replaces: W10211244)				$ 11.48
24	W11283272		Assembly, Service Door   (Replaces: W11269277)				$ 95.29
25	W11164086		Jumper, Coin Sensor   (Replaces: W10785124)		Appelez-nous	-
26	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
27	W11759237		Harness, Main   (Replaces: W11504866)		Appelez-nous	-
28	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 7.04
29	W10751202		Transformer, 240-22.5 Vac   (Replaces: W10633921)				$ 193.15
30	W11743885		Harness, Coin Extender   (Replaces: W11512935)		Appelez-nous	-
31	3347825		Plate, Mounting		Appelez-nous	-
32	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
33	WPW10529176		Meter Case   (Replaces: W10529176)				$ 273.48
34	W11123448		Switch, Vault Service Door   (Replaces: W10133289)		Appelez-nous	-
35	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
36	WPW10139210		Screw   (Replaces: W10139210)				$ 6.75
37	W11401086		Cam, Commercial Lock   (Replaces: W10156125)				$ 6.17
1A	W11696097		Installation Instructions, Exp E,f,s		Appelez-nous	-
1B	W11736276		Owners Manual, Ele And Gas Gr, It, Hu		Appelez-nous	-
1C	W11736273		Owners Manual, Ele And Gas E, F, S		Appelez-nous	-
1D	W11692453		Tech Sheet		Appelez-nous	-
NI	WPW10476820		10a Cord Adapter (british)   (Replaces: W10476820)				$ 24.03
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 69.35
NI	W11384794		10a Cord Adaptor (austrailian)   (Replaces: W10476818)		Appelez-nous	-
NI	ARIE8FCC04DE3D574430F087FB15D8C2BC1		Optional Parts (not Illustrated)		Appelez-nous	-
