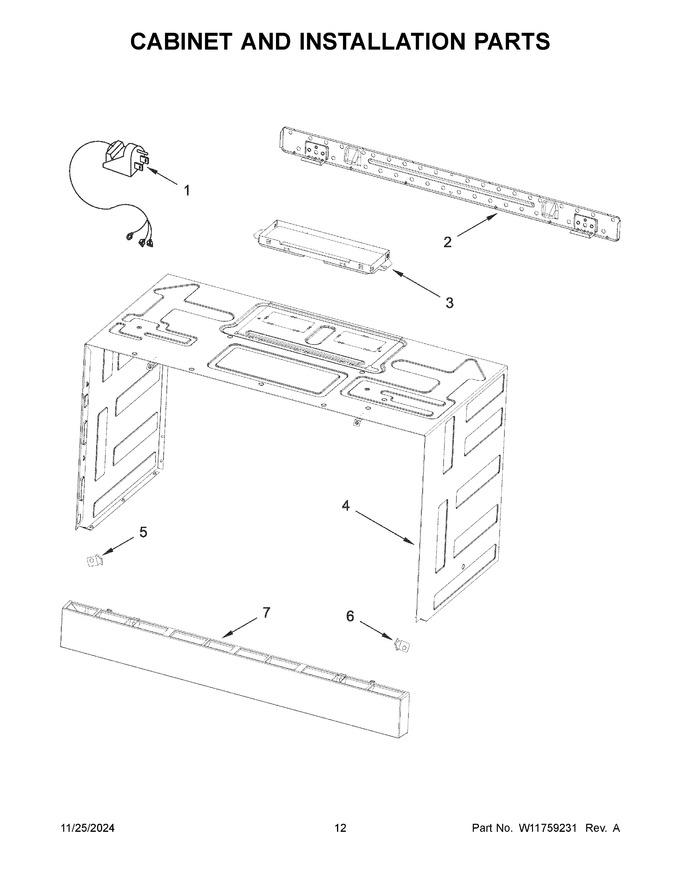

07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 18.48 | |||||
| 2 | W11025649 | Plate, Mounting |
|
Immediately | $ 21.16 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 65.74 | ||||
| 4 | W11574180 | Case, Outer (white) (Replaces: W11546243) |
|
- | |||||
| 5 | W10703282 | Vent Grid Holder, Left Side (stainless) |
|
$ 9.44 | |||||
| 6 | W11026306 | Vent Grid Holder, Right Side (stainless) (Replaces: W10703284) |
|
Immediately | $ 6.47 | ||||
| 7 | W11506733 | Grille, Vent (white) |
|
- | |||||
| 4A | W11574179 | Case, Outer (black) (Replaces: W11546230) |
|
- | |||||
| 5A | W10810989 | Vent Grid Holder, Left Side (for White Models) (black) (Replaces: W10703283) |
|
$ 8.76 | |||||
| 6A | W10830163 | Vent Grid Holder, Right Side (for White Models) (black) (Replaces: W10703285) |
|
$ 12.18 | |||||
| 7A | W11506732 | Grille, Vent (black) |
|
- | |||||
| 7B | W11508360 | Grille, Vent (stainless) |
|
- | |||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 6.47 | ||||
| NI | W11301790 | Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer |
|
Immediately | $ 131.14 | ||||
| NI | W10821385 | Hardware, Installation |
|
Immediately | $ 88.90 | ||||
| NI | W11746342 | Miscellaneous Parts, Harness, Main (Replaces: W11662304) |
|
Immediately | $ 70.92 |
