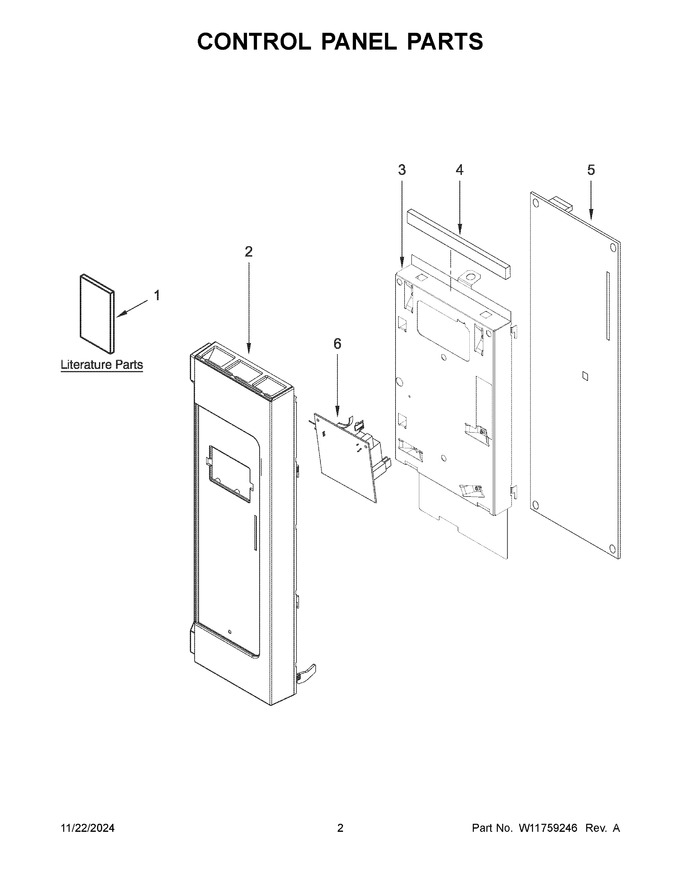

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11496338 | Instructions, Installation |
|
- | |||||
| 2 | W11184551 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) (Replaces: W11179877) |
|
$ 289.03 | |||||
| 3 | W10833366 | Backer, Control |
|
- | |||||
| 4 | W11685342 | Seal, Control Panel (Replaces: W11217976) |
|
- | |||||
| 5 | W11342846 | Pcba, Appliance Control Unit (Replaces: W11221415) |
|
$ 245.53 | |||||
| 6 | W11333816 | Pcba, User Interface (Replaces: W11222116) |
|
$ 159.38 | |||||
| 1A | W10918342 | Guide, Use And Care |
|
- | |||||
| 1B | W11265252 | Guide, Quick Reference |
|
- | |||||
| 1C | W11521900 | Sheet, Tech |
|
- | |||||
| 2A | W11184553 | Control Panel Assembly (includes Lens And Membrane Switch) (black Stainless) (Replaces: W11179898) |
|
$ 289.03 |
