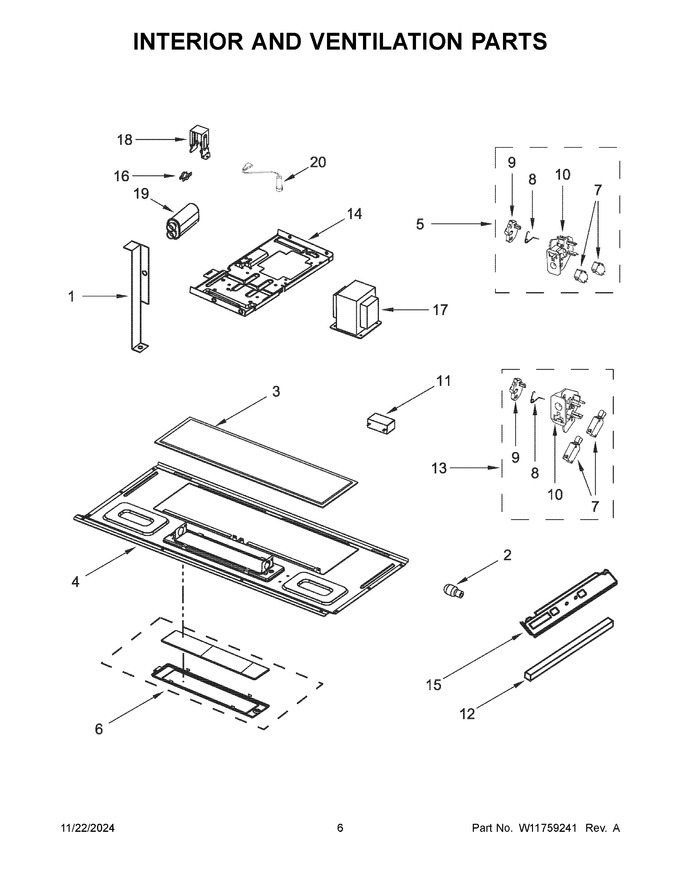

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313275		Bracket, Top Cavity				$ 30.53
2	W11520384		Lamp, Halogen			Immediately	$ 9.37
3	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 29.33
4	W11450485		Plate, Bottom				$ 53.97
5	W11551558		Assembly, Upper Interlock (includes Switches)   (Replaces: W11433682)			Immediately	$ 30.33
6	W10240330		Assembly, Lamp Glass And Holder				$ 6.47
7	ARI0D21584639E823BFBB5C96AA1C5530CB		Switches, Interlock (not Serviced, Order Interlock Assemblies)		Appelez-nous	-
8	W10156812		Spring, Interlock			Immediately	$ 10.93
9	W10562613		Plate, Cam			Immediately	$ 16.05
10	WP8206419		Support, Interlock   (Replaces: 8206419)			Immediately	$ 20.13
11	W11405830		Capacitor, Hood Motor		Appelez-nous	-
12	W10571179		Seal, Cooling		Appelez-nous	-
13	W11551761		Assembly, Lower Interlock (includes Switches)   (Replaces: W11433683)			Immediately	$ 27.70
14	W11520831		Chassis			Immediately	$ 56.47
15	W11521327		Support, Ntc				$ 56.50
16	W11574181		Thermostat, Cavity   (Replaces: W11397274)			Immediately	$ 37.40
17	W11759254		Transformer, High Voltage   (Replaces: W11739997)				$ 98.96
18	W10532063		Bracket, Capacitor				$ 25.45
19	WPW10574736		Capacitor, High Voltage   (Replaces: W10574736)				$ 153.53
20	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 29.88
10A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 7.26

    View Diagram in Separate Window       Print Part List
