01 - Cover Sheet
02 - Door
03 - Cabinet

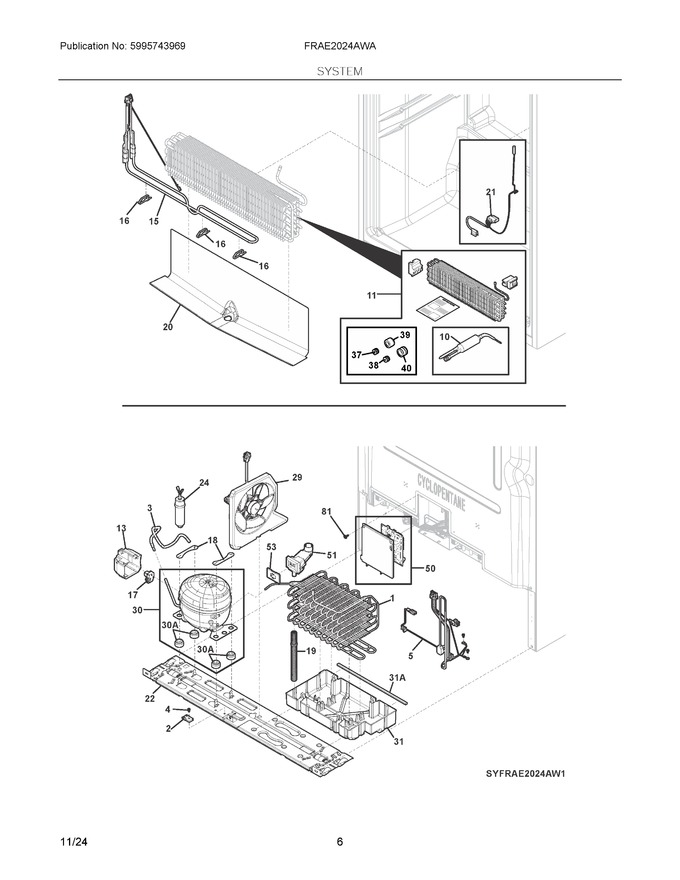

04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533258 | Condenser, Dynamic |
|
$ 138.22 | |||||
| 2 | 5304454459 | Clamp, Cable |
|
- | |||||
| 3 | 5304519693 | Tube, Suction Jumper |
|
$ 31.10 | |||||
| 4 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| 5 | 5304531478 | Harness, Wiring, Machine Comprt |
|
$ 53.03 | |||||
| 10 | A19676501 | Filter, Drier, Service |
|
Immediately | $ 99.73 | ||||
| 11 | 5304523830 | Evaporator, Coil |
|
Immediately | $ 143.67 | ||||
| 13 | 5304522303 | Cover, Electricals, Compressor |
|
- | |||||
| 15 | 5304524953 | Heater, Defrost |
|
Immediately | $ 165.56 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 17 | 5304538465 | Controller, Compressor Ptc (Replaces: 5304522267) |
|
Immediately | $ 33.52 | ||||
| 18 | 5304524607 | Clamp, Compressor |
|
$ 2.89 | |||||
| 19 | 5304525042 | Tube, Drain, Extension |
|
Immediately | $ 9.86 | ||||
| 20 | 5304524755 | Trough, Drain (Replaces: 5304523720) |
|
$ 51.34 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 22 | 5304523693 | Base Assembly, Compressor, W/rollers |
|
- | |||||
| 24 | 5304530011 | Capacitor |
|
Immediately | $ 27.86 | ||||
| 29 | 5304535399 | Shroud-cond.fan Assy Br, 29 # |
|
$ 94.28 | |||||
| 30 | 5304519758 | Compressor, Assembly, Th1114hy, W/grommets |
|
Immediately | $ 390.80 | ||||
| 31 | 5304523709 | Pan, Drain |
|
$ 35.42 | |||||
| 37 | 5304534991 | Ring-lok (jumper In), 37 # |
|
$ 4.67 | |||||
| 38 | L13000629 | Lockring, Drier |
|
Immediately | $ 9.48 | ||||
| 39 | L13005654 | Lock Ring, Evaporator, To Suction |
|
Immediately | $ 10.08 | ||||
| 40 | L13000625 | Lockring, Drier |
|
Immediately | $ 12.40 | ||||
| 50 | 5304524126 | Main Board, Assembly, W/housing |
|
Immediately | $ 206.89 | ||||
| 51 | 5304530111 | Drain Jumper, Assembly, W/seal |
|
$ 19.52 | |||||
| 53 | 5304525744 | Cover, Drain Jumper |
|
$ 9.68 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 30A | 811978901 | Grommet, Compressor |
|
- | |||||
| 31A | 5304523724 | Seal, Drain Pan, Foam |
|
$ 5.07 | |||||
| NI | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NI | 218103403 | Wire Tie |
|
- |
