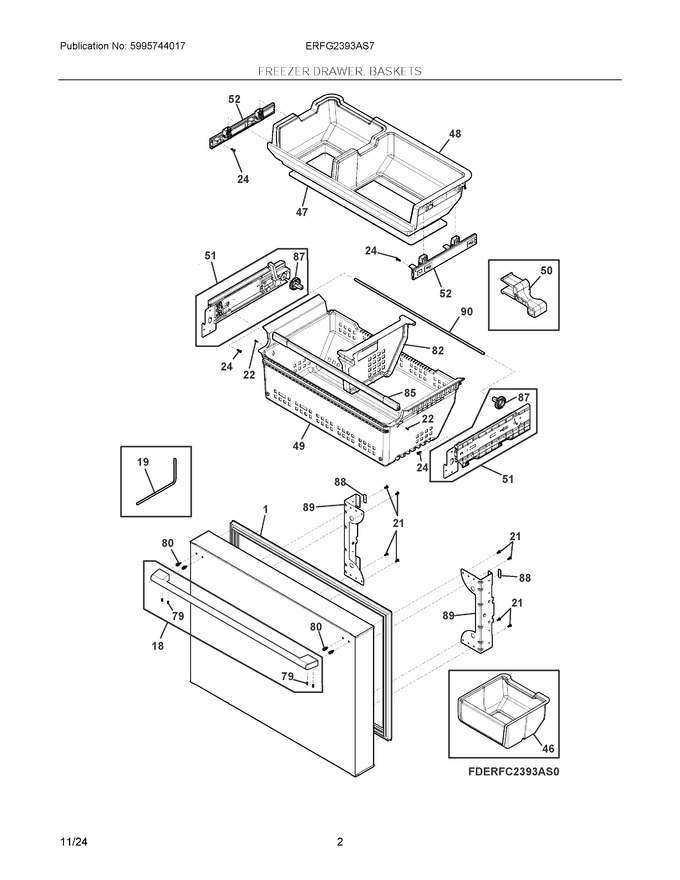

02 - Freezer Drawer, Baskets


03 - Fresh Food Door


04 - Cabinet


05 - Shelves


06 - Cooling System


07 - Controls


08 - Ice Maker


09 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304537408		Gasket, Freezer Drawer, Grey   (Replaces: 5304501270)			Immediately	$ 86.28
11	5304537081		Drawer Panel, Outer, Stainless, Freezer   (Replaces: 5304532821)				$ 512.27
14	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
18	5304524807		Handle Assembly, Stainless, W/set Screws			Immediately	$ 182.18
19	5304508270		Wrench, Allen, Set Screw			Immediately	$ 21.34
21	241690602		Screw, Quadrex, #10-16 Hilo			Immediately	$ 10.63
22	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
24	240383412		Screw, Truss Hd Quad, #10-16 X .750, Zinc				$ 11.44
46	5304532882		Container, Ice, Freezer			Immediately	$ 80.70
47	5304531175		Glass, Basket, Upper				$ 132.06
48	5304532881		Basket, Freezer, Gray, Upper		Appelez-nous	-
49	5304532804		Basket, Freezer, Gray, Lower		Appelez-nous	-
50	5304532802		Clip, Freezer Basket, Gray		Appelez-nous	-
51	5304532800		Slide Assembly, Basket Lower, Gray, Lh, W/pinion				$ 203.44
52	5304532917		Slide Assembly, Basket, Gray, Rh Upper		Appelez-nous	-
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
82	5304532901		Divider, Lower Basker, Gray, Freezer		Appelez-nous	-
83	241812202		Magnet, Door				$ 72.30
85	242139302		Beam, Support, Gray, Divider, Lower Basket		Appelez-nous	-
87	5304532805		Pinion, Gear, Gray		Appelez-nous	-
88	241979602		Bumper, Rubber, Black		Appelez-nous	-
89	5304532803		Bracket, Freezer Drawer, Gray		Appelez-nous	-
90	241770705		Bar, Timing, Gray				$ 50.66
51A	5304532801		Slide Assembly, Basket Lower, Gray, Rh, W/pinion				$ 203.44
52A	5304532918		Slide Assembly, Basket, Gray, Lh Upper		Appelez-nous	-
NI	242146401		Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4)			Immediately	$ 14.27
NIB	242039702		Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer				$ 4.26
NIB	242039701		Screw, Shoulder, #10-16 Type Ab, Upper Slides, W/washer				$ 13.46
