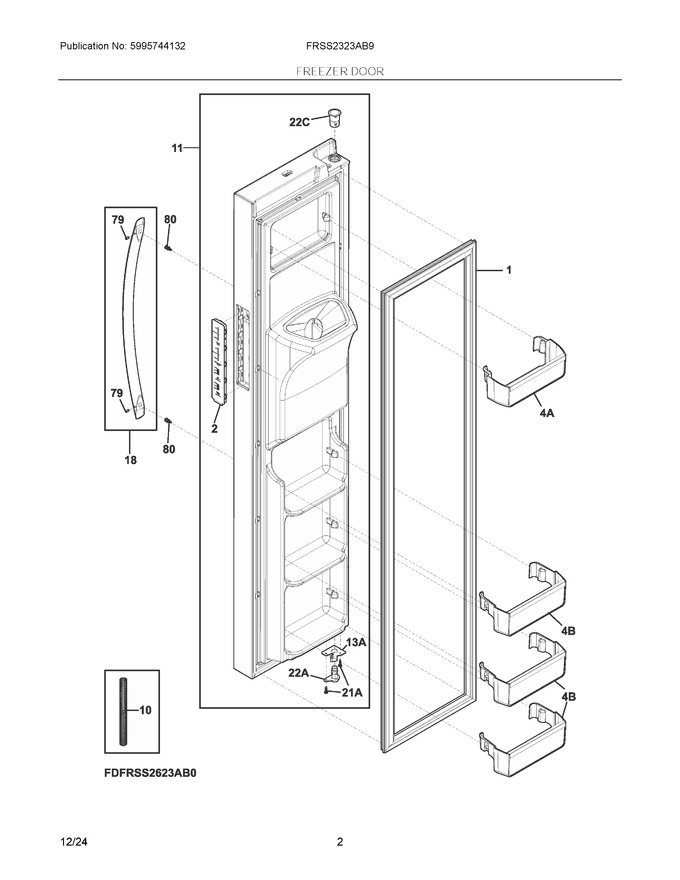

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786016 | Gasket-door, Magnetic, Freezer |
|
$ 93.12 | |||||
| 2 | 5304533234 | S/a Ui Side Control - Black |
|
$ 133.17 | |||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 18.57 | |||||
| 11 | 5304527275 | Door Assembly, Freezer, Black, Complete |
|
- | |||||
| 18 | 5304536620 | Handle, Door, Black, W/set Screws (Replaces: 5304510342) |
|
$ 76.24 | |||||
| 79 | 218755405 | Screw, Set , 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder , #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 5304527380 | Stop, Door, Black, Freezer |
|
$ 15.17 | |||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 5303918892 | Bushing, Door Closer, Black (Replaces: 5304525921) |
|
$ 30.08 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 4A | 5304536367 | Bin Assembly, Pseudo, Upper (Replaces: 5304527145) |
|
Immediately | $ 15.08 | ||||
| 4B | 5304527146 | Bin Assembly, Pseudo, Lower |
|
- | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 218515401 | Clip, Grille/tube , & Hinge |
|
$ 17.72 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 218976447 | Tube, Water, 60", Natural, |
|
$ 16.99 |
