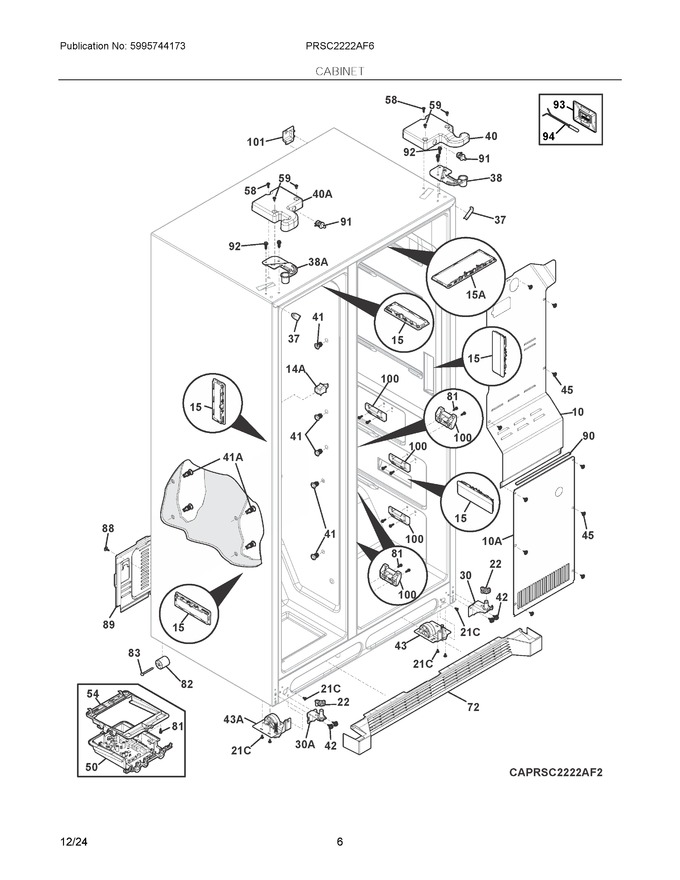

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 808165003 | Cover-air Duct |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 15 | 5304530711 | Light Assembly, Led, Single, W/lens |
|
Immediately | $ 47.19 | ||||
| 22 | 5304532189 | Plate, Strike, Black |
|
- | |||||
| 30 | 5304532613 | Hinge Assembly, Rh, Lower, W/hinge Pin |
|
Immediately | $ 38.57 | ||||
| 37 | 5304519618 | Trim-cabinet Corner, Gray |
|
$ 12.13 | |||||
| 38 | 5304525957 | Bracket, Hinge, Rh Upper |
|
$ 100.11 | |||||
| 40 | 5304533385 | Cover, Upper Hinge, Gray, Rh |
|
- | |||||
| 41 | 241550701 | Grommet-shelf Mtg, .96" Long |
|
$ 18.20 | |||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 14.18 | ||||
| 43 | 5304525901 | Roller Assembly, Static, Rh, W/leveling Leg |
|
$ 26.54 | |||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 50 | 5304535039 | S/a-main Power Board, 50 # |
|
Immediately | $ 149.39 | ||||
| 54 | 5304536492 | Support, Housing, Main Board |
|
Immediately | $ 18.05 | ||||
| 58 | 134154100 | Screw, Hex Head, #10-32 X 3/8 (Replaces: 242025601) |
|
$ 13.46 | |||||
| 59 | 241732101 | Screw, 10-32 X 1/2 |
|
Immediately | $ 15.60 | ||||
| 72 | 5304537061 | Grill, Front, Gray, Lower |
|
Immediately | $ 27.59 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 21.27 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 88 | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| 89 | 5304520905 | Cover Assembly, Access, Metal |
|
Immediately | $ 74.03 | ||||
| 90 | 218249808 | Seal-coil Cover |
|
- | |||||
| 91 | 241911710 | Switch, Light, Gray, Plunger Style |
|
$ 10.62 | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 13.46 | |||||
| 93 | 5304508041 | Cover, Thermistor |
|
$ 11.92 | |||||
| 94 | 5303918775 | Thermistor Kit, Temperature, Ntc, W/connectors |
|
Immediately | $ 23.74 | ||||
| 100 | 5304525909 | Support, Crisper Cover |
|
Immediately | $ 10.62 | ||||
| 101 | 242157801 | Cover, Tubing, Eps Block |
|
$ 23.13 | |||||
| 10A | 808217503 | Cover-evap Coil, Lower (Replaces: 808217502) |
|
$ 27.75 | |||||
| 14A | 241547902 | Switch-light/lamp |
|
Immediately | $ 23.25 | ||||
| 15A | 5304530715 | Light Assembly, Led, Wide Double, W/lens |
|
Immediately | $ 75.83 | ||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 30A | 5304532614 | Hinge Assembly, Lh, Lower, W/hinge Pin |
|
$ 35.14 | |||||
| 38A | 5304525958 | Bracket, Hinge, Lh Upper |
|
$ 28.83 | |||||
| 40A | 5304533380 | Cover, Upper Hinge, Gray, Lh |
|
$ 136.69 | |||||
| 41A | 241550801 | Grommet-shelf Mtg, 1.40" Long |
|
$ 63.70 | |||||
| 43A | 5304525902 | Roller Assembly, Static, Lh, W/leveling Leg |
|
$ 26.54 | |||||
| NIA | 241500305 | Screw, Hex Head, #8-18x5/8 (Replaces: 241853202) |
|
$ 3.03 | |||||
| NIA | 808835601 | Harness, Jumper, Light Switch |
|
$ 20.98 | |||||
| NIAA | 242294102 | Gasket, Led Light, Double |
|
$ 51.59 |
