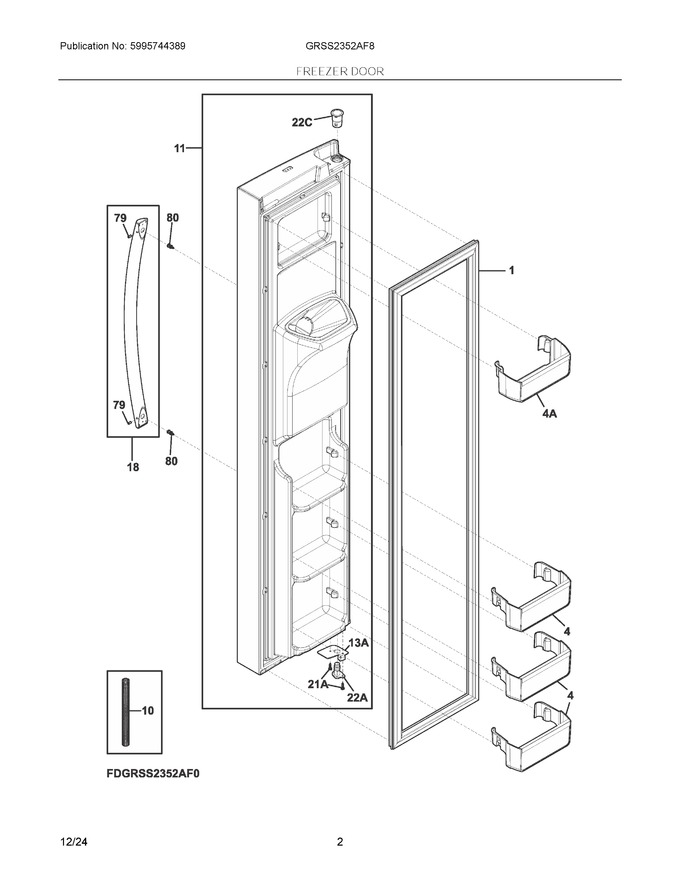

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786016 | Gasket-door, Magnetic, Freezer |
|
$ 93.12 | |||||
| 4 | 5304536372 | Bin-lwr Pseudo W/trim 23sd Gal (Replaces: 5304535769) |
|
$ 13.55 | |||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 18.57 | |||||
| 11 | 140138476209 | Door Assembly, Freezer, |
|
Immediately | $ 329.88 | ||||
| 18 | 140186157115 | Handle, Door, Stainless, W/set Screws (Replaces: 5304527111) |
|
Immediately | $ 58.96 | ||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241990202 | Door Stop, Black, Frzr |
|
Immediately | $ 21.27 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 4A | 5304535011 | Bin-upr Pseudo W/trim 23sd Gal |
|
- | |||||
| NI | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 20.56 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NIA | 241601002 | Wrench, Allen |
|
- |
