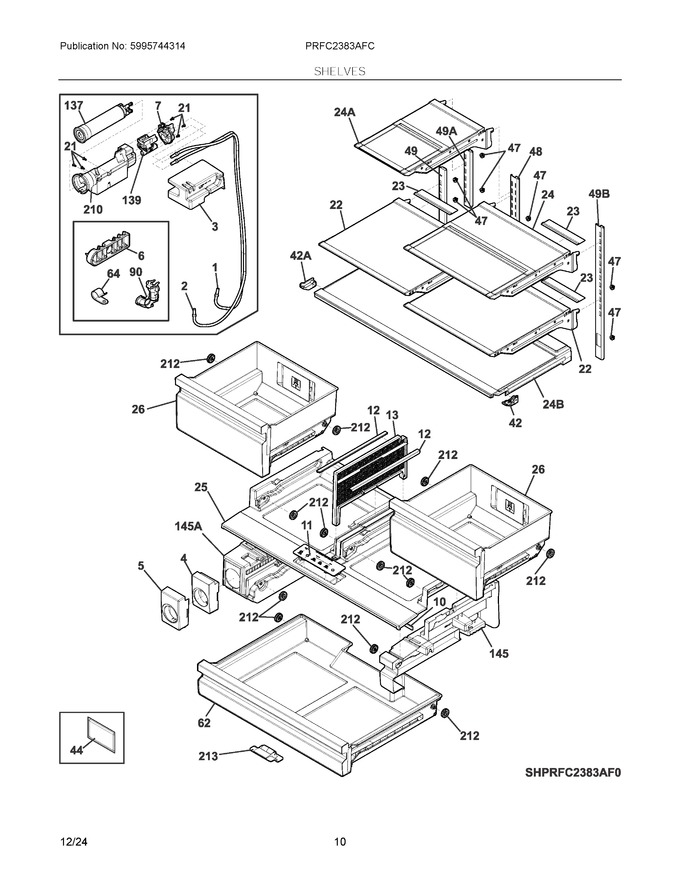

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242220131		Tube, Water, 44.89", Brown, Valve, To Filter Inlet			Immediately	$ 15.32
2	242220132		Tube, Water, 47.24", Natural, Filter Outlet, To Valve			Immediately	$ 15.32
3	5304531114		Insulation, Water Line				$ 5.91
4	5304537281		Fascia-water Filter Fascia		Appelez-nous	-
5	5304532903		Cover, Filter Facia				$ 8.68
6	5304531203		Clamp, Water Tube				$ 4.71
7	5304531689		Support, Water Filter			Immediately	$ 11.13
10	241872205		Beam, Support, Deli		Appelez-nous	-
11	5304530920		User Interface, Assembly, Drawer, Temp Control			Immediately	$ 177.89
12	5304532933		Gasket, Center Support, Crisper				$ 7.09
13	5304532879		Support, Crispers, Center		Appelez-nous	-
21	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
22	5304530901		Shelf Assembly, Fixed, 1/2 Width, W/trim-glass				$ 173.62
23	5304530899		Buffer, Shelf Air				$ 8.44
24	5304530904		Shelf Assembly, Slide Under, 1/2 Width, W/trim-glass				$ 139.28
25	5304535036		Cd Deli Cover Assy		Appelez-nous	-
26	5304534570		Crisper Pan Assy - Cd, 26		Appelez-nous	-
42	5304531177		Support, Crisper, White, Rh			Immediately	$ 4.80
44	FRPAPKRF		Frig Freshness Booster Refill			Immediately	$ 15.60
47	242081301		Screw-shoulder		Appelez-nous	-
48	242122102		Channel, Shelf Mtg., Center				$ 43.23
49	5304530658		Channel, Shelf Mtg., Lh				$ 31.10
62	5304535898		Cd Deli Pan Assy, 62		Appelez-nous	-
64	240396801		Clamp, Tube/wiring, 1/2", Nylon, Black/natural				$ 19.13
90	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
137	FPPWFU01		Filter, Water, Wf-1, Frig Purepour			Immediately	$ 80.38
145	5304530994		Support Assembly, Deli, Rh, W/roller		Appelez-nous	-
210	5304530987		Housing, Water Filter			Immediately	$ 11.57
212	5304508016		Roller, Crisper Pan			Immediately	$ 9.42
213	242010901		Roller Assy, Deli Pan				$ 49.62
139A	140156010054		Manifold, Water Filter   (Replaces: 5304524817)				$ 30.57
145A	5304538069		S/a Deli Support Assy Lh Cd		Appelez-nous	-
24A	5304530905		Shelf Assembly, Slide Under, 1/4 Width, W/trim-glass				$ 129.73
24B	5304537808		S/a-pur Crspr Cvr, Cd-gall Pro		Appelez-nous	-
42A	5304531176		Support, Crisper, White, Lh				$ 4.80
49A	5304531311		Channel-shelf Mtg. I/m		Appelez-nous	-
49B	242122303		Channel, Shelf Mtg., Side, Rh				$ 48.54
NI	5304531023		Harness, Wiring, Water Filter			Immediately	$ 28.16
NIA	5304530898		Harness, Wiring, Drawer, Temp Control			Immediately	$ 165.33
NIA	5304453923		Screw, Hex Hd Wshr, #8-32 X 1/2		Appelez-nous	-
NIA	242039702		Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer				$ 4.26
