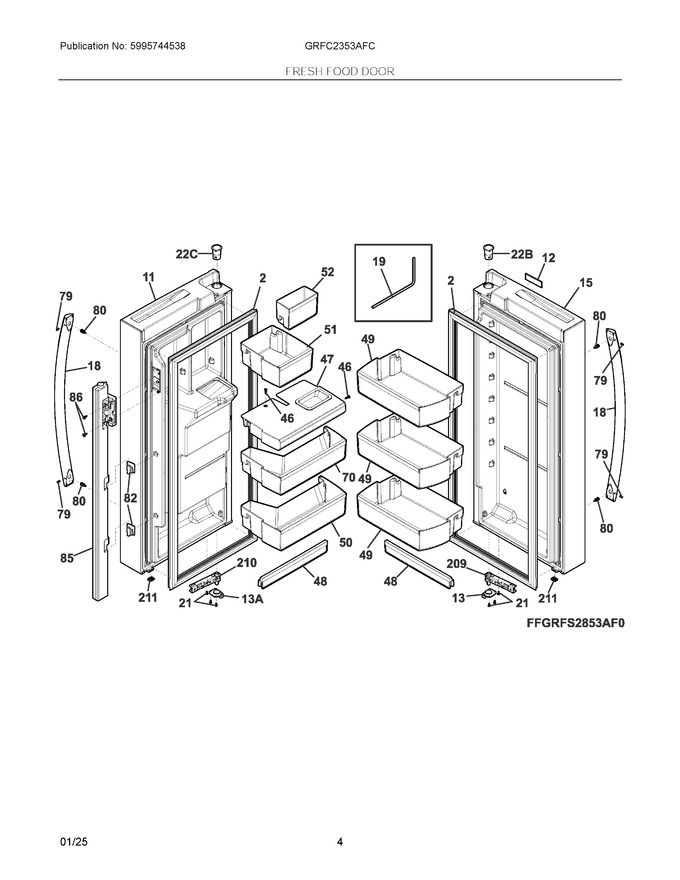

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241778315 | Gasket-dr, Magnetic Ff Wh 36 |
|
Immediately | $ 89.88 | ||||
| 11 | 5304530758 | Door Assembly, Fresh Food, Stainless, Lh |
|
Immediately | $ 383.69 | ||||
| 12 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 58.15 | ||||
| 13 | 5304508039 | Door Stop, Assembly, Rh, W/bushing |
|
$ 22.81 | |||||
| 15 | 5304530757 | Door Assembly, Fresh Food, Stainless, Rh |
|
$ 342.50 | |||||
| 18 | 140186157115 | Handle, Door, Stainless, W/set Screws (Replaces: 5304527111) |
|
Immediately | $ 58.96 | ||||
| 19 | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 21.34 | ||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 46 | 240383413 | Screw, 19.1mm, White |
|
$ 6.07 | |||||
| 47 | 5304535834 | Ice Chute Bracket |
|
- | |||||
| 48 | 5304539162 | Door Lower Bin (strap) (Replaces: 5304536261) |
|
Immediately | $ 16.68 | ||||
| 49 | 5304536259 | Door Standard Bin - Rh |
|
Immediately | $ 44.01 | ||||
| 50 | 5304536280 | Lh - Door 2 Liter Bin |
|
- | |||||
| 51 | 5304536256 | Lh - Door Dispenser Gallon Bin (Replaces: 5304536282) |
|
$ 29.48 | |||||
| 52 | 5304530958 | Door Bin, Slim Disp, Lh Door |
|
$ 64.40 | |||||
| 70 | 5304536281 | Door-dairy, Bin |
|
- | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 82 | 241779401 | Hinge-mullion, Upper/lower, Flipper |
|
Immediately | $ 21.99 | ||||
| 85 | 5304530853 | Mullion Assembly, Flipper, Gray, 85 #, W/heater |
|
Immediately | $ 112.21 | ||||
| 86 | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 16.30 | ||||
| 209 | 5304526201 | Rh Door Closer W/o Inner Washr |
|
Immediately | $ 84.92 | ||||
| 210 | 5304526202 | Lh Door Closer W/o Inner Washr |
|
Immediately | $ 98.34 | ||||
| 211 | 5304508077 | Bumper, Door, Bottom |
|
$ 12.13 | |||||
| 13A | 5304508038 | Door Stop, Assembly, Lh, W/bushing |
|
Immediately | $ 22.75 | ||||
| 22B | 241760403 | Bearing, Hinge, Top, Rh Door |
|
Immediately | $ 19.13 | ||||
| 22C | 241760401 | Bearing, Hinge, Top, Lh Door |
|
Immediately | $ 19.13 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 5304530940 | Harness, Wiring, Door/dispenser |
|
Immediately | $ 134.23 | ||||
| NIA | 5304508776 | Lock Washer, External Tooth, #8 |
|
$ 4.35 |
