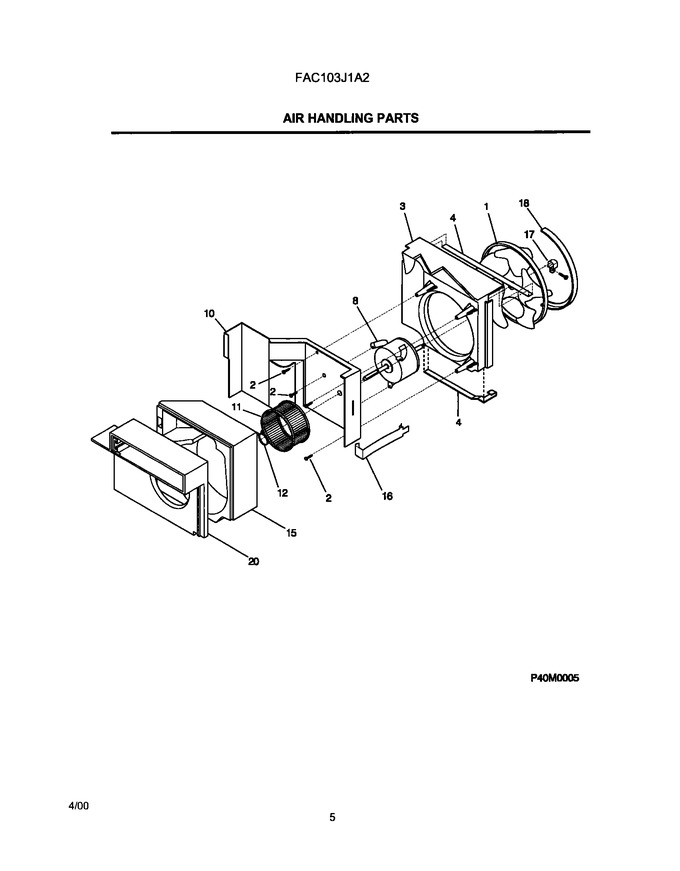

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3202975 | Screw`10-16 X 0.72 ,square Drive |
|
- | |||||
| 3 | 309624201 | Housing-fan |
|
- | |||||
| 4 | 5303270043 | Seal, Condenser |
|
- | |||||
| 8 | 309631504 | Motor-fan,115 V |
|
- | |||||
| 10 | 309602403 | Bulkhead |
|
- | |||||
| 12 | 5303012110 | Clamp-blower |
|
$ 8.14 | |||||
| 15 | 5304407653 | Housing-blower |
|
- | |||||
| 16 | 309100201 | Clip |
|
- | |||||
| 20 | 5304407654 | Plate-blower Housing,scroll Plate |
|
- | |||||
| F1 | 309624502 | Fan Blade,with Clamp |
|
$ 85.31 | |||||
| F11 | 309617101 | Blower Wheel |
|
- | |||||
| F2A | 08007481 | Nut |
|
$ 5.81 |
