New Model Search:

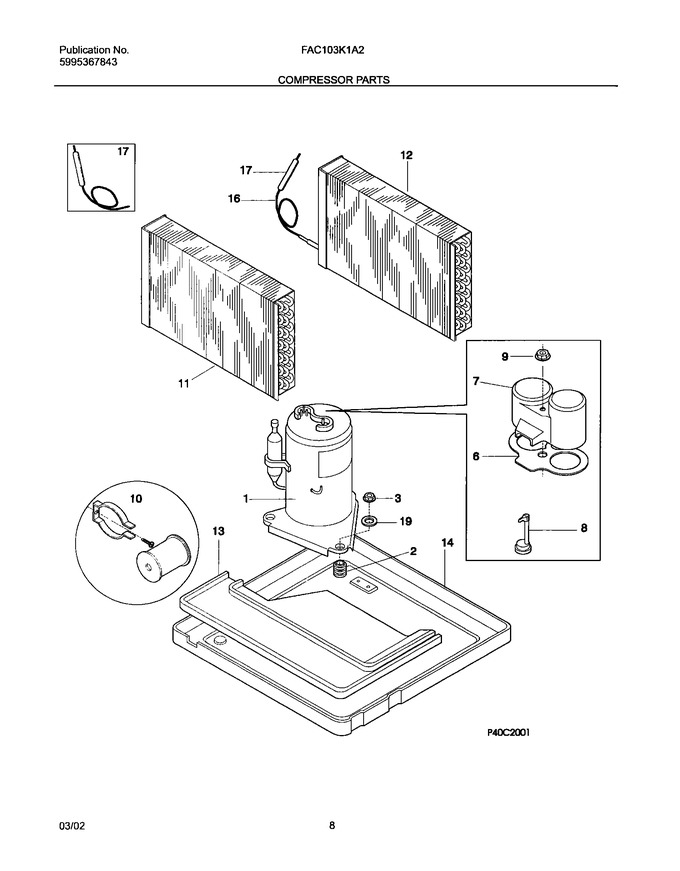

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5303283877 | Grommet,compressor Mtg ,(3) |
|
- | |||||
| 3 | 5308006948 | Nut,compressor Mtg ,(3) |
|
- | |||||
| 6 | 3200282 | Gasket-terminal Cover |
|
- | |||||
| 7 | 3200281 | Cover,compr Terminal |
|
- | |||||
| 9 | 5303211017 | Nut,terminal Cover ,compressor Elec |
|
- | |||||
| 14 | 309644002 | Base/compressor-stud Assy |
|
- | |||||
| 19 | 5303002664 | Washer,compressor Mtg |
|
- | |||||
| F1 | 5304426969 | Compressor |
|
- | |||||
| F10 | 5303317601 | Start Assist Kit,compressor |
|
$ 148.05 | |||||
| F11 | 309619315 | Evaporator |
|
- | |||||
| F12 | 309645405 | Condenser Assy,compact3r/15fpi |
|
- | |||||
| F13 | 309642802 | Tray,evap Drip (Replaces: 309642801) |
|
- | |||||
| F16 | 5304403237 | Capillary Tube,50 Inch Long |
|
- | |||||
| F17 | 5300265301 | Drier-filter,service Kit |
|
$ 284.30 | |||||
| F8 | 5304426968 | Overload Protector |
|
- | |||||
| NI | 309112501 | Washer,metallic |
|
- |
