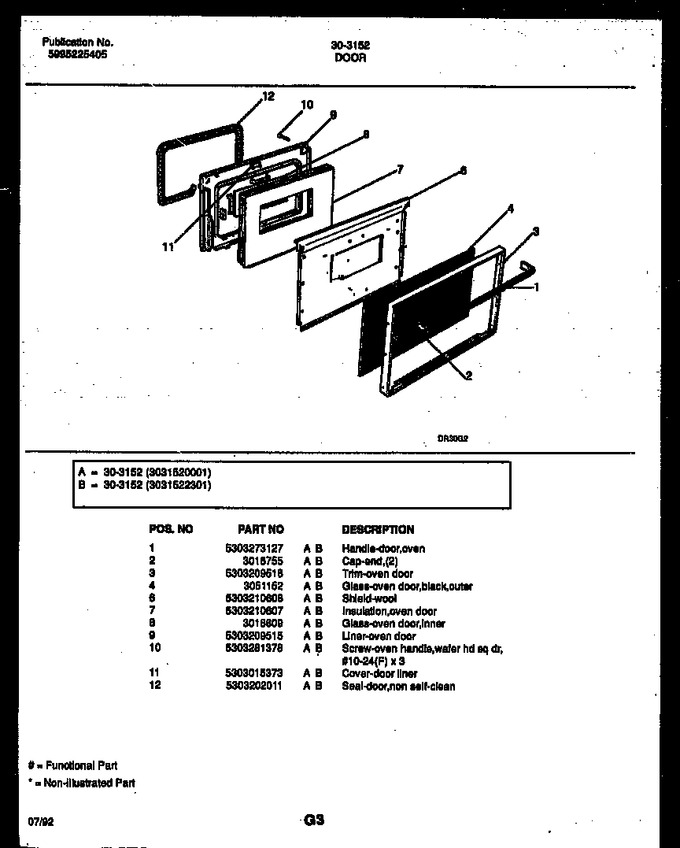

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303273127 | Handle-door, Oven |
|
- | |||||
| 2 | 3016755 | Cap, End (2) |
|
- | |||||
| 3 | 5303209518 | Trim-oven Door |
|
- | |||||
| 4 | 3051152 | Glass-oven Door, Black, Outer |
|
- | |||||
| 6 | 5303210608 | Shield-wool |
|
- | |||||
| 7 | 5303210607 | Insulation, Oven Door |
|
- | |||||
| 8 | 3018609 | Glass-oven Door, Inner |
|
- | |||||
| 9 | 5303209515 | Liner-oven Door |
|
- | |||||
| 10 | 5303281378 | Screw-oven Handle, Wafer Hd Sq Dr, 10-24(f) X 3 |
|
$ 13.60 | |||||
| 11 | 5303015373 | Cover-door Liner |
|
- | |||||
| 12 | 5303202011 | Seal-door, Non Self-clean |
|
$ 166.84 |
