01 - Backguard Parts


02 - Body Parts


03 - Door Parts


04 - Oven Control System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8002P021-60		Catch, Door Lock	01	Appelez-nous	-
1	3601F093-51		Baffle	01	Appelez-nous	-
1	8003P002-60		Bumper Door (round)	01	Appelez-nous	-
2	7112P034-60		Clip, Door	01	Appelez-nous	-
3	7706P222-60		Frame, Oven Door	01	Appelez-nous	-
4	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
5	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
6	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
7	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
8	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
9	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
10	2411F001-74		Handle Door Alm	01	Appelez-nous	-
10	7701P047-60		Handle, Door	01	Appelez-nous	-
11	7728P012-60		Insert, Oven Door Handle	01	Appelez-nous	-
12	2402W128-12		Lining Assy	01	Appelez-nous	-
13	2416F018-74		Panel, Storage Dwr Almond	01	Appelez-nous	-
13	2410W028-12		Pad Assy, O.d. Solid	01	Appelez-nous	-
14	3804F051-80		Retainer, Glass	01	Appelez-nous	-
15	7101P013-60		Screw, Special	01	Appelez-nous	-
16	7208P002-60		Seal	01	Appelez-nous	-
17	3420A033-34		Stop, Oven Door	01	Appelez-nous	-
17	3406F020-80		Runner, Inner	01	Appelez-nous	-
17	3406F026-80		Runner, Inner	21	Appelez-nous	-
17	8016P009-60		Glide, Drawer	21	Appelez-nous	-
17	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	01			$ 11.95
17	WP7803P058-60		Spring   (Replaces: 7803P002-60)	01			$ 16.55
17	8016P004-60		Glide, Drawer	01	Appelez-nous	-
17	8016P004-60		Glide, Drawer	21	Appelez-nous	-

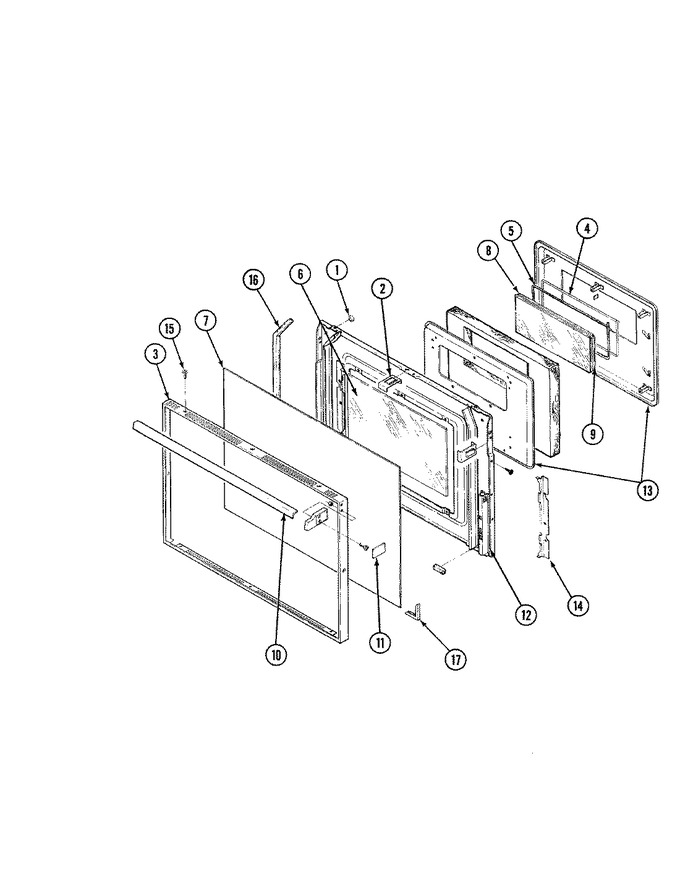

    View Diagram in Separate Window       Print Part List
