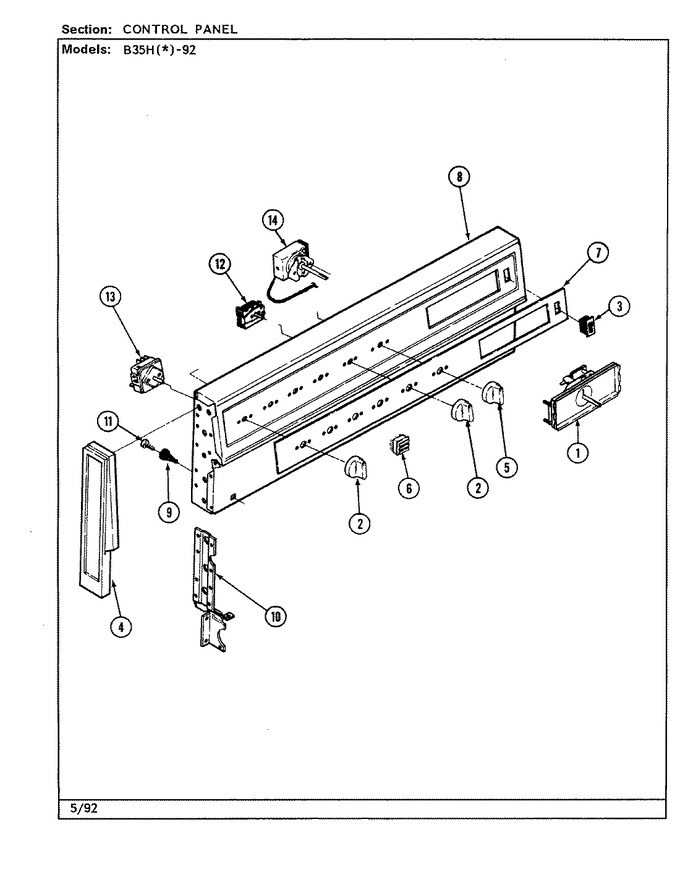

03 - Control Panel
04 - Door
05 - Oven
06 - Top Assy.
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7711P466-60 | Knob, Clock | 01 |
|
$ 14.72 | ||||
| 1 | 7602P085-60 | Clock | 01 |
|
- | ||||
| 2 | 7737P021-60 | Knob | 01 |
|
$ 26.24 | ||||
| 3 | 7403P067-60 | Switch, Rocker (blk) | 01 |
|
$ 91.35 | ||||
| 4 | 7726P021-60 | End Cap, Backguard (rt-chr) | 01 |
|
- | ||||
| 4 | 7103P053-60 | Nut, Push-on End Cap | 01 |
|
- | ||||
| 4 | 7726P010-60 | End Cap, Backguard (lt-chr) | 01 |
|
- | ||||
| 5 | 7739P025-60 | Knob | 01 |
|
- | ||||
| 6 | 7407P065-60 | Light, Signal | 01 |
|
- | ||||
| 7 | 7703P186-60 | Trim, Backguard | 01 |
|
- | ||||
| 8 | 2601W338-71 | Panel, Backguard (wht) | 01 |
|
- | ||||
| 8 | 2601W258-81 | Panel, Bkgd White | 01 |
|
- | ||||
| 8 | 4005F283-80 | Cover, Shield Bkgd Wire | 01 |
|
- | ||||
| 9 | 7105P002-60 | Support, Main Top | 01 |
|
- | ||||
| 10 | WPW10068250 | Screw (Replaces: 7101P074-60) | 01 |
|
$ 3.66 | ||||
| 10 | 3807F348-51 | Support, Bkgd End Lf | 01 |
|
- | ||||
| 10 | 3807F349-51 | Support, Bkgd End Rt | 01 |
|
- | ||||
| 11 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 01 |
|
Immediately | $ 12.62 | |||
| 12 | 7403P031-60 | Switch, Selector | 01 |
|
- | ||||
| 13 | W11122006 | Switch, Inf. Control (Replaces: 7403P168-60) | 01 |
|
$ 145.12 | ||||
| 13 | 7101P280-60 | Screw W/washer (blk) | 01 |
|
- | ||||
| 14 | 7404P029-60 | Thermostat | 01 |
|
- | ||||
| 14 | 7101P279-60 | Screw W/washer | 01 |
|
- |
