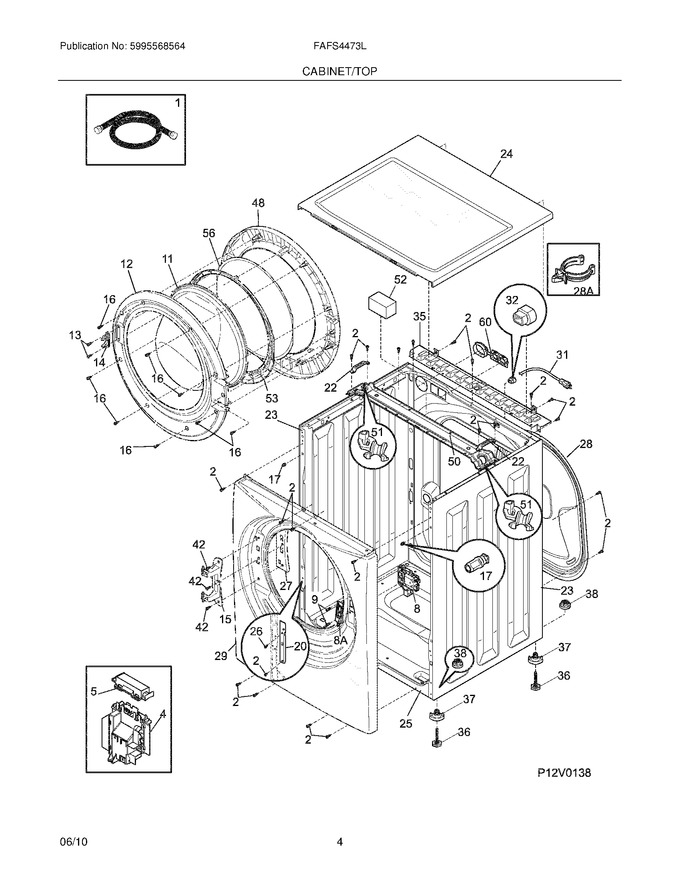

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131454100		Hose,water Inlet ,4 Ft. ,hose & Washer		Appelez-nous	-
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
5	134649700		Cover,motor Control ,housing				$ 48.15
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
11	134366400		Panel,door Glass   (Replaces: 134950800)				$ 313.91
12	137280302		Frame,inner Door ,gray			Immediately	$ 202.00
13	131302901		Screw,10-16 X 0.750				$ 4.96
14	131763302		Striker,door/lock ,gray   (Replaces: 134456602)			Immediately	$ 35.08
15	134550800		Hinge,door ,with Bushings				$ 141.75
16	131205300		Screw,10-16 X 0.750			Immediately	$ 12.10
17	134638700		Clip,assembly		Appelez-nous	-
22	134648500		Bracket-spring,retainer				$ 19.69
23	134958010		Panel,left/right Side ,white				$ 223.55
24	134638510		Panel,work Top ,white				$ 217.22
25	134646000		Base		Appelez-nous	-
27	134550900		Bracket,hinge ,reinforcement				$ 60.72
28	134646200		Back Panel Service,service				$ 11.63
29	137021810		Panel,front ,white				$ 250.16
32	5303209428		Bushing,power Cord				$ 17.01
35	134713100		Bracket,top Panel Mtg. ,rear				$ 70.82
36	134639100		Leveling Leg,screw			Immediately	$ 31.19
37	134617600		Bushing,leveling Leg				$ 34.02
38	134639200		Nut,leveling Leg ,bushing				$ 31.90
42	137380600		Screw,flat Head ,m5 X .8 X 17.5   (Replaces: 134601900)				$ 9.41
48	5304506743		Panel,outer Door ,chrome   (Replaces: 137265525)				$ 279.73
50	134645600		Bracket,tub Suspension		Appelez-nous	-
51	134655800		Protector,tub Suspension ,spring Hook ,(2)				$ 4.45
52	131931202		Dampener,vibration ,foam				$ 17.35
53	137266700		Ring,door Transition				$ 175.68
56	137266620		Glass,outer Door Lens		Appelez-nous	-
60	134372000		Grommet,dispenser ,back Panel				$ 30.47
28A	134876501		Clip,hose,drain ,rear-panel   (Replaces: 134876500)				$ 19.85
8A	137279900		Vent,door ,complete Assy				$ 47.48
F26	134813600		Switch,door			Immediately	$ 43.09
F31	137011400		Power Cord,electric Svce ,120 16a				$ 62.17
F4	134618213		Control Board,motor   (Replaces: 134618210)				$ 310.14
F8	131763256		Door Lock/switch Assy   (Replaces: 131763255)			Immediately	$ 146.76
FNI	137247900		Wiring Harness,door Switch ,with Light		Appelez-nous	-
NI	134926600		Damper,sound				$ 14.18
NI	137021600		Bracket,mounting ,left ,front Panel				$ 11.96
NI	137021610		Bracket,mounting ,right ,front Panel				$ 21.60
NI	134591500		Plug Assy,shipping Holes ,back				$ 46.78
NI	134629400		Screw,mc5x8.5 Torx ,cabinet Mtg				$ 12.76
NI	134649400		Fastener,hose Clip ,external				$ 19.53
