01 - Cover Sheet


02 - Oven, Cabinet

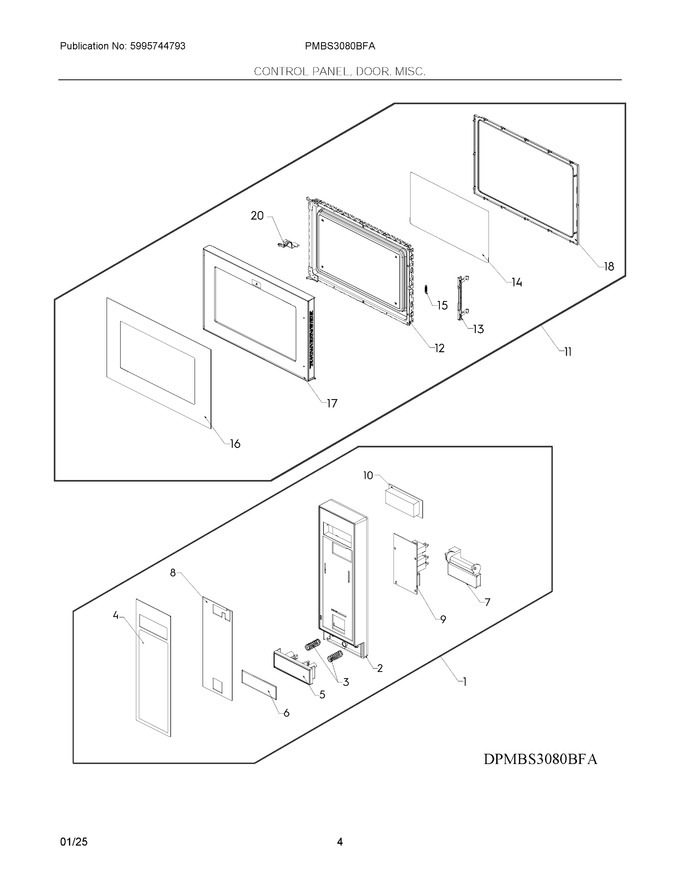

03 - Control Panel, Door, Misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4056017819		Control Panel, Assembly, Black, Complete				$ 180.73
2	5304532531		Control Panel, Black		Appelez-nous	-
3	5304519324		Spring, Door Button				$ 5.07
4	4056017827		Overlay, Touch Pad, Stainless		Appelez-nous	-
5	5304532533		Button, Door Open, Black				$ 14.55
6	5304532668		Trim, Door Button, Stainless		Appelez-nous	-
7	5304519325		Lever, Door Opening			Immediately	$ 12.44
8	4056017751		Pcb Touch Board, User Interface			Immediately	$ 48.91
9	5304537463		Pc Board, Control, Main			Immediately	$ 136.27
10	5304532537		Pc Board, Display		Appelez-nous	-
11	4056017835		Door Assembly, Complete, Black		Appelez-nous	-
12	5304519329		Frame, Assembly, Door		Appelez-nous	-
13	5304537448		Latch Assembly, Door		Appelez-nous	-
14	5304532539		Screen, Door, Inner		Appelez-nous	-
15	5304519334		Spring, Door Latch				$ 5.21
16	5304532671		Door Screen, Front		Appelez-nous	-
17	5304532541		Door Panel, Outer, Black		Appelez-nous	-
18	5304519332		Gasket, Door				$ 33.51
20	5304519333		Hinge, Door, Upper				$ 24.62

    View Diagram in Separate Window       Print Part List
