SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven, Cabinet

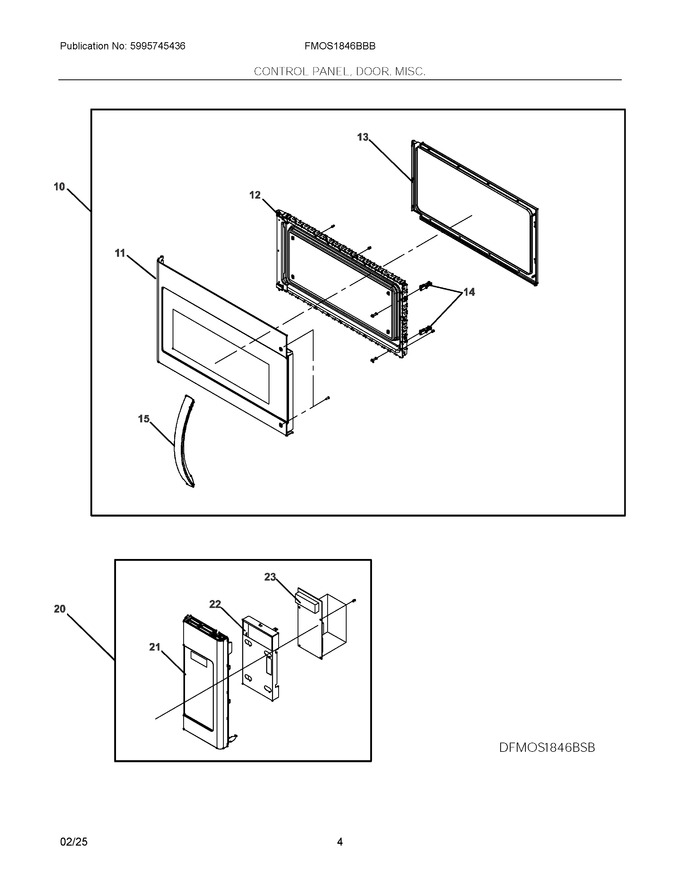

03 - Control Panel, Door, Misc.


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304523967		Door Assembly, Complete, Black		Appelez-nous	-
11	5304523968		Door Assembly, Outer, Black		Appelez-nous	-
12	5304523969		Frame, Door, Black			Immediately	$ 115.67
13	5304523970		Gasket, Door				$ 77.40
14	5304523249		Latch, Door				$ 8.77
15	5304509581		Handle, Door, Black				$ 167.38
20	5304533681		Control Panel, Assembly, Black, Complete		Appelez-nous	-
21	5304533682		Control Panel, Assembly, Black, Outer, W/touchpad		Appelez-nous	-
22	5304523973		Shield, Pc Board				$ 29.65
23	5304533649		Pc Board, Assembly, Control, W/display			Immediately	$ 194.66

    View Diagram in Separate Window       Print Part List
