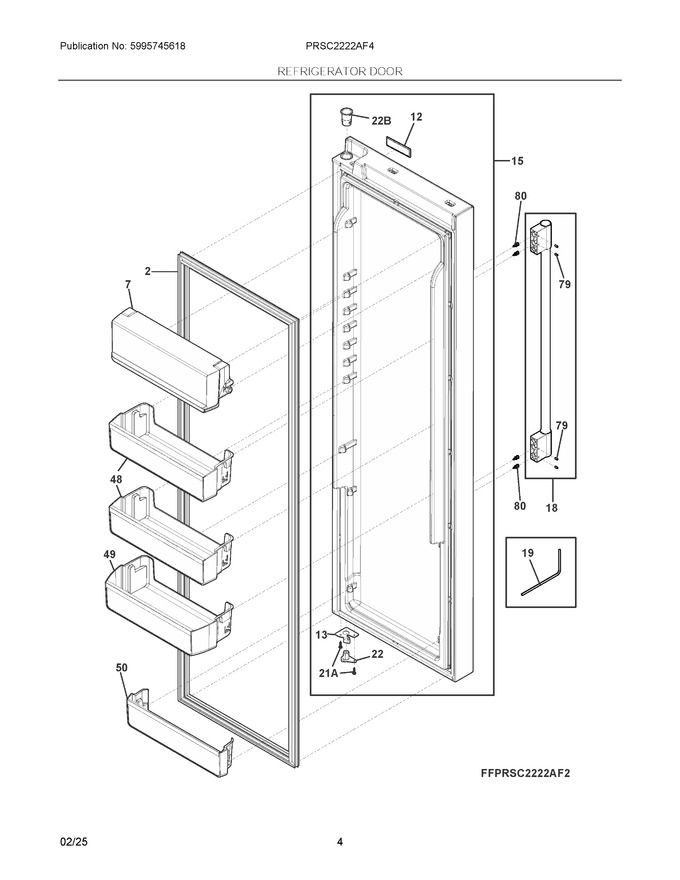

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241510207 | Gasket-refr Door, Gray, Magnetic (Replaces: 241510205) |
|
Immediately | $ 97.14 | ||||
| 7 | 5304533272 | Bin Assembly, Dairy, Ff Door |
|
$ 151.51 | |||||
| 12 | 809108704 | Badge, Frigidaire Pro |
|
Immediately | $ 44.19 | ||||
| 13 | 5304527379 | Stop, Door, Black, Fresh Food |
|
$ 15.17 | |||||
| 15 | 5304533301 | Door Assembly, Fresh Food, Stainless, Rh |
|
$ 359.70 | |||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 111.76 | ||||
| 19 | 241601002 | Wrench, Allen |
|
- | |||||
| 22 | 5304532162 | Bushing, Hinge, Black, Lower |
|
$ 5.01 | |||||
| 48 | 5304533276 | Bin Assembly, 2 Liter, Ff Door |
|
$ 146.64 | |||||
| 49 | 5304533273 | Bin Assembly, Gallon, Ff Door |
|
$ 140.38 | |||||
| 50 | 5304533274 | Bin Assembly, Lower, Ff Door |
|
$ 136.75 | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22B | 241760404 | Bearing, Hinge, Top |
|
$ 12.76 |
