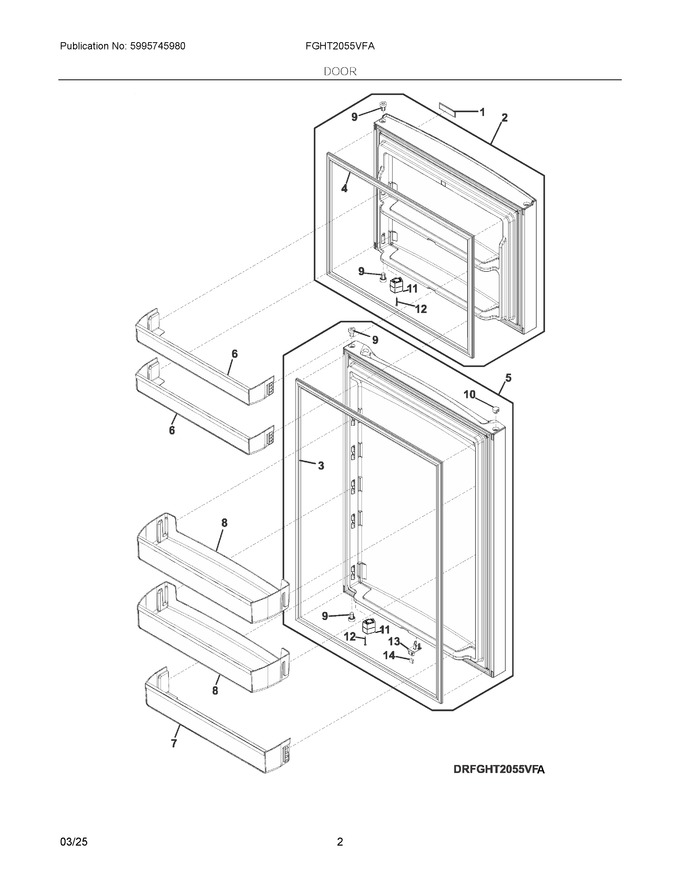

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304512150 | Nameplate, Chrome, Frig Gallery |
|
Immediately | $ 58.15 | ||||
| 2 | 5304528922 | Door Assembly, Freezer, Ez Stainless, W/gasket-hrdwre |
|
$ 304.41 | |||||
| 3 | 5304528903 | Gasket, Door, Gray, Fresh Food |
|
Immediately | $ 205.12 | ||||
| 4 | 5304528904 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 180.01 | ||||
| 5 | 5304528918 | Door Assembly, Fresh Food, Ez Stainless, W/gasket-hrdwre |
|
Immediately | $ 333.22 | ||||
| 6 | 5304528879 | Bin, Door, Freezer |
|
$ 89.85 | |||||
| 7 | 5304528877 | Bin, Door, 4", Clear, Fresh Food |
|
$ 89.85 | |||||
| 8 | 140137082024 | Bin, Door, 6", Clear, Fresh Food (Replaces: 5304528878) |
|
- | |||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.28 | ||||
| 10 | 5304522187 | Cover, Hinge Bearing, Gray |
|
Immediately | $ 7.44 | ||||
| 11 | 5304536275 | Stopper, Door, Gray |
|
Immediately | $ 3.77 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 | ||||
| 13 | 5304528883 | Housing, Sensor Magnet, Ff Door |
|
Immediately | $ 9.10 | ||||
| 14 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 18.95 |
