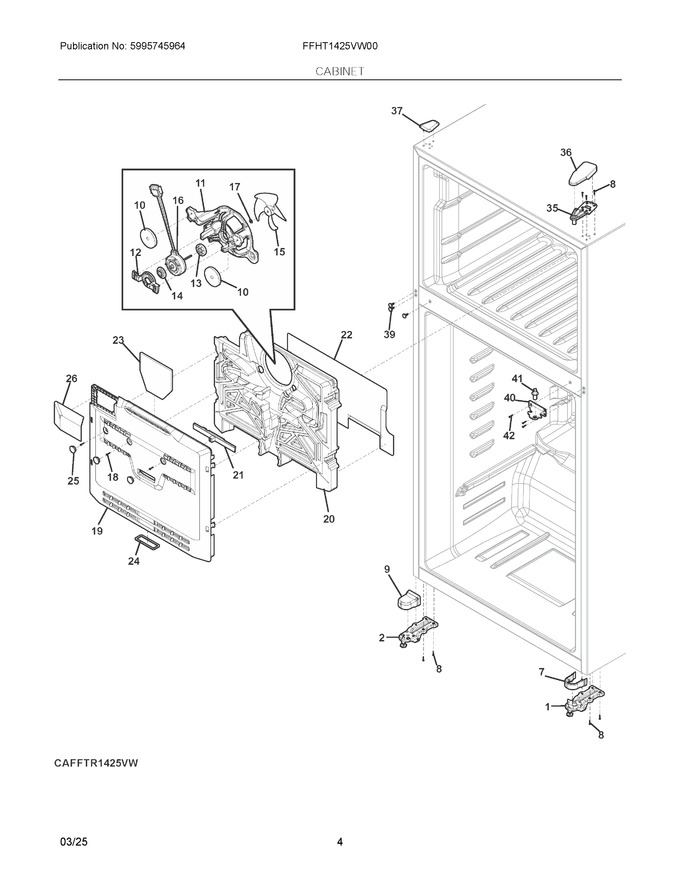

03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520629		Bracket Assembly, Bottom Hinge, Rh, Stop/foot/rollr			Immediately	$ 66.97
2	5304520630		Bracket Assembly, Bottom, Lh, W/foot-roller			Immediately	$ 69.57
8	811949401		Screw, Trilob, M5 X 16			Immediately	$ 5.31
9	5304524355		Cover, Anti-tip, Grey				$ 3.73
10	5304520468		Grommet, Fan Shroud, Foam		Appelez-nous	-
11	811974401		Shroud, Evaporator Fan			Immediately	$ 18.95
12	5304519177		Clip, Retainer				$ 8.34
13	5304520469		Grommet, Evaporator Fan				$ 10.62
14	5304519178		Grommet, Fan Mounting			Immediately	$ 7.59
15	811699604		Blade, Evaporator Fan   (Replaces: 811699602)			Immediately	$ 4.19
16	809069207		Motor, Fan, Frz Evaporator			Immediately	$ 148.78
17	5304519176		Washer, Slinger, Nylon				$ 3.03
18	811949503		Screw, Truss, 4.2 X 13				$ 3.03
19	5304536636		Cover, Evaporator   (Replaces: 5304520471)				$ 20.34
20	5304535848		Duct, Evaporator, Rear   (Replaces: 5304520472)				$ 13.28
21	5304520473		Slide, Air Baffle, Blue, Freezer		Appelez-nous	-
22	5304520474		Tape, Air Duct, Aluminum Foil, Rear			Immediately	$ 29.58
23	807305102		Insulation, Tape, Evap Cover		Appelez-nous	-
24	811950002		Seal, Duct, Foam, Lower		Appelez-nous	-
25	811971601		Cover, Screw Hole		Appelez-nous	-
26	5304520475		Cover, Electrical, & Water Inlet, Optional Im				$ 11.17
35	5304520476		Hinge, Door, Upper			Immediately	$ 37.76
36	5304520477		Cover, Upper Hinge, White		Appelez-nous	-
37	811996402		Cover, Hinge Holes, White, Cabinet Top				$ 9.41
39	808432202		Cover, Screw Hole, White, Mullion		Appelez-nous	-
40	140072822053		Hinge, Door, Zinc Plated, Center   (Replaces: 5304522614)			Immediately	$ 23.62
41	5304520479		Pin, Hinge, Center				$ 13.65
42	5304520480		Screw, Trilob, M5 X 14				$ 3.03
NIA	5304520470		Seal, Motor Connector, 4 Pin				$ 13.56
